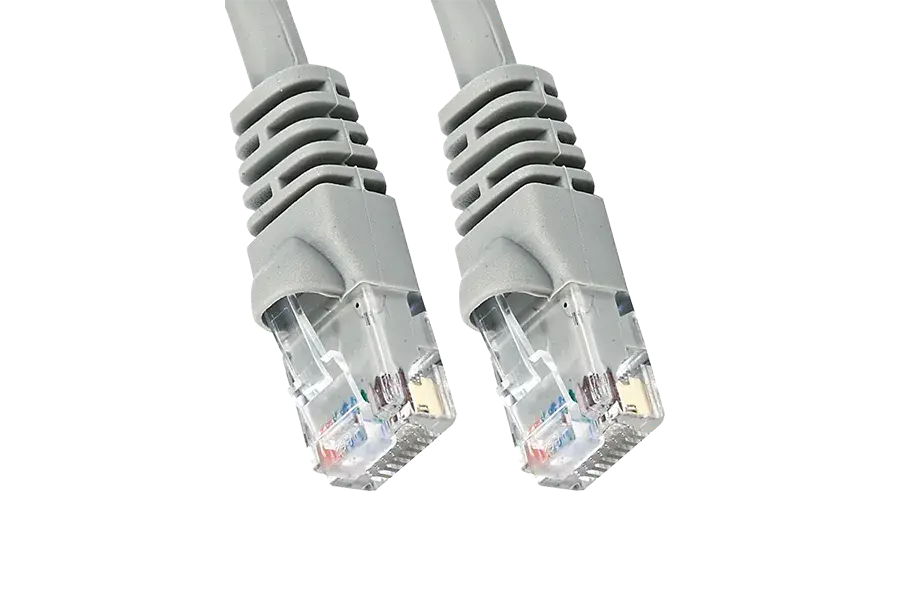

PowerCat 6A Shielded Patch Cord PCD-07000-0E Gray

The Molex PowerCat 6A shielded patch cords are key components of the PowerCat 6A shielded end-to-end solution.

Brand : Molex

Model : PCD-07000-0E

Enquiry Us Contact Now

Molex PowerCat 6A Patch Cords are designed to support high speed 10GBASE-T networks and are backward compatible with 10/100/1000BASE-T networks. The patch cable is made from high quality four pair 26 AWG stranded copper wire. Available in a range of colours and lengths, PowerCat 6A patch cords are pre-terminated with RJ45 plugs and feature anti-snag slim strain relief slip on boots.

Features

• 4 pair 26 AWG stranded copper wire
• Pre-terminated with RJ45 plugs
• Slim clear anti-snag slip on boots
• Suitable for EIA 568A or 568B wiring
• LS0H sheath
• 10G Performance when installed as a complete PowerCat 6A Shielded System

Specifications

Commercial Standards

• ISO/IEC 11801 2nd Ed And 1 Class EA
• TIA-568.2-D Cat 6A
• UL 1863
• CSA C22.2

Fire Propagation Tests

• IEC 60332-1
• IEC 61034-2

Mechanical

Cable

• Conductor Size: 26 AWG stranded copper wire
• Screen Material: Aluminum/polyester shield with tinned copper drain wire
• Nom. O.D.: 6.5mm
• Sheath: Low Smoke Zero Halogen (LS0H)
• Bend Radius: 8X O.D.
• Operating Temperature: -25°C to +55°C

Plug

• Minimum operating life: 750 insertion cycles
• RJ45 Plug Material: Clear polycarbonate (PC)
• Boot Material: Clear polyvinylchloride (PVC)
• Contact Material: 0.35mm thick copper
• Contact Plating: 1.27um gold
• RJ45 Plug Dimensions compliant with: ISO/IEC 60603-7 and FCC 47 Part 68

Electrical

• Max voltage: 150 VAC (max)
• Max current: 1.5A @ 25°C
