HPE X120 1G SFP LC SX Transceiver

HPE X120 1G SFP LC SX Transceiver

Brand : HP

Model : JD118B

Enquiry Us Contact Now

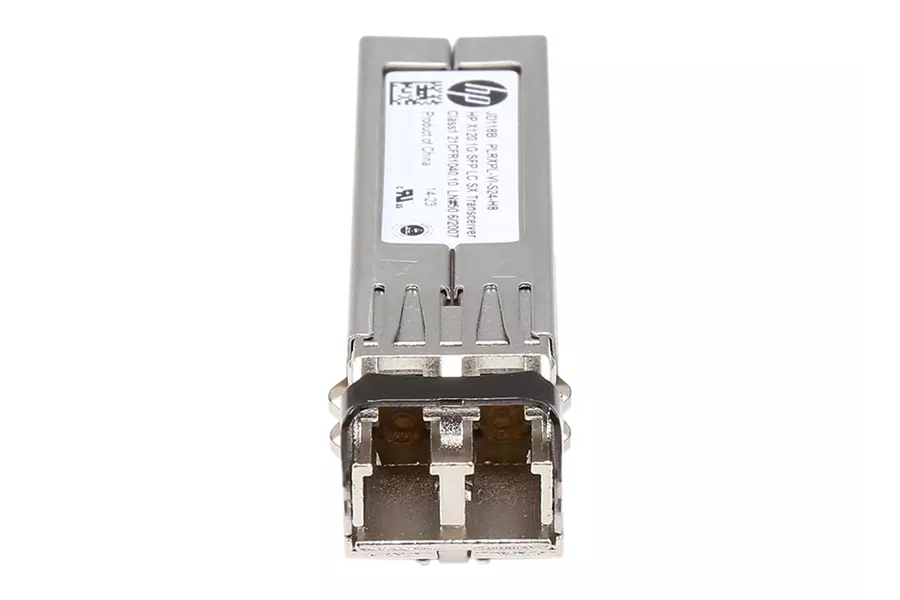

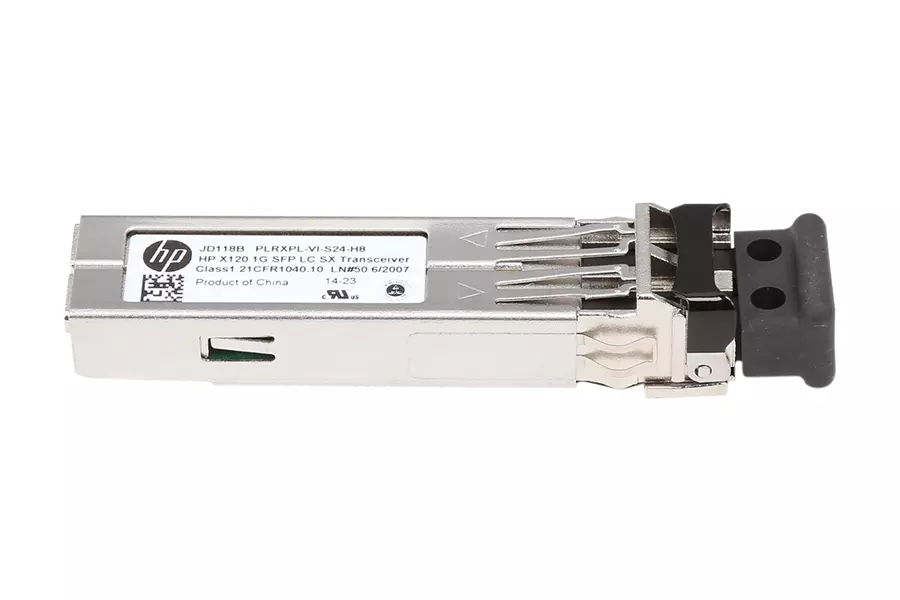

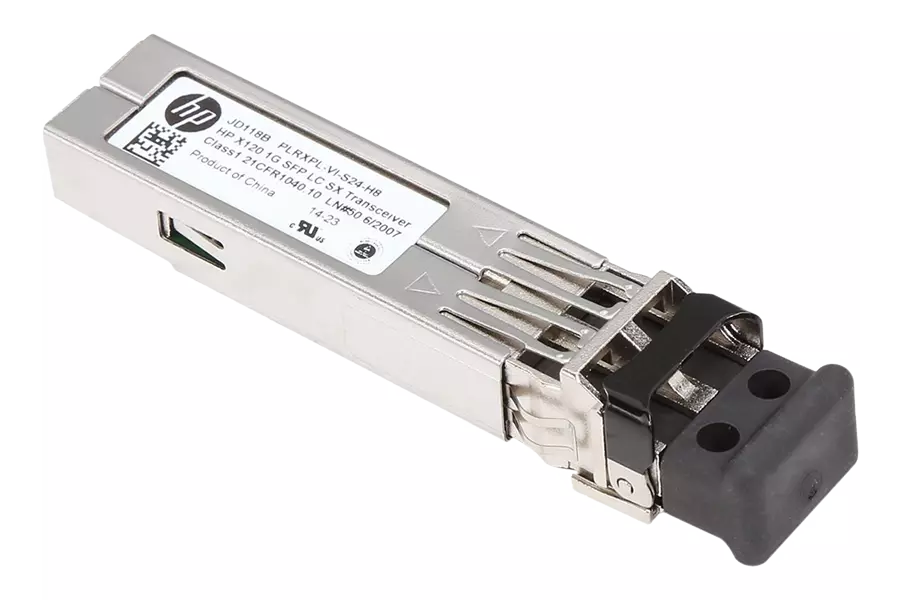

HP X120 1G SFP LC SX Transceiver (JD118B)

A small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550m on a Multimode fiber.

Specifications

• Ports : 1 LC 1000BASE-SX port
• Connectivity :
  • Connector type : LC
  • Wavelength : 850 nm
• Physical characteristics :
  • Dimensions 2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x
  • 1.17 cm)
  • Full configuration weight : 0.04 lb. (0.02 kg)
• Electrical characteristics :
  • Power consumption typical : 0.8 W
  • Power consumption maximum : 1.0 W
• Cabling :
  • Maximum distance:
    • FDDI Grade distance = 220m
    • OM1 = 275m
    • OM2 = 500m
    • OM3 = Not Specified by standard
  • Cable length : up to 550m
  • Fiber type : Multi Mode
• Services : Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
