Category : HP Transceivers

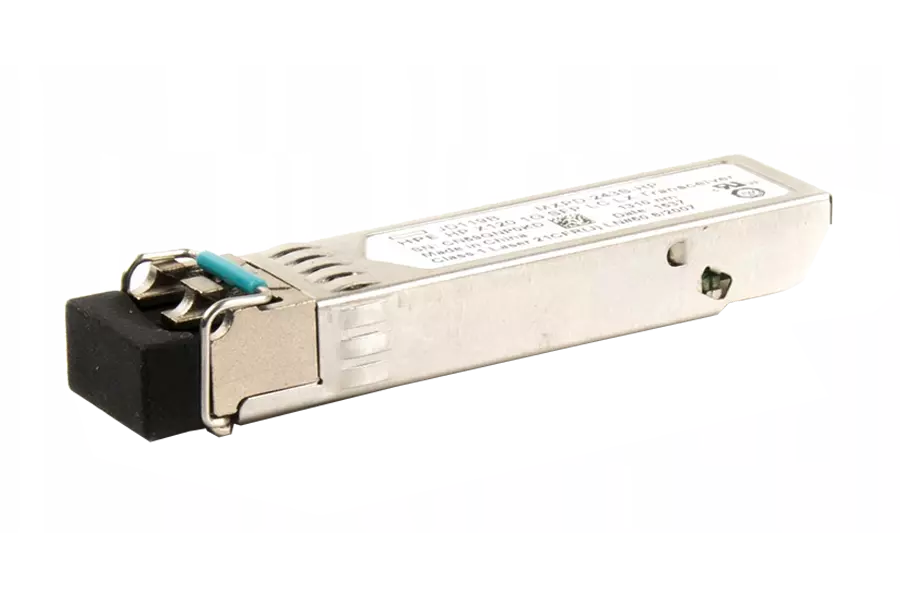

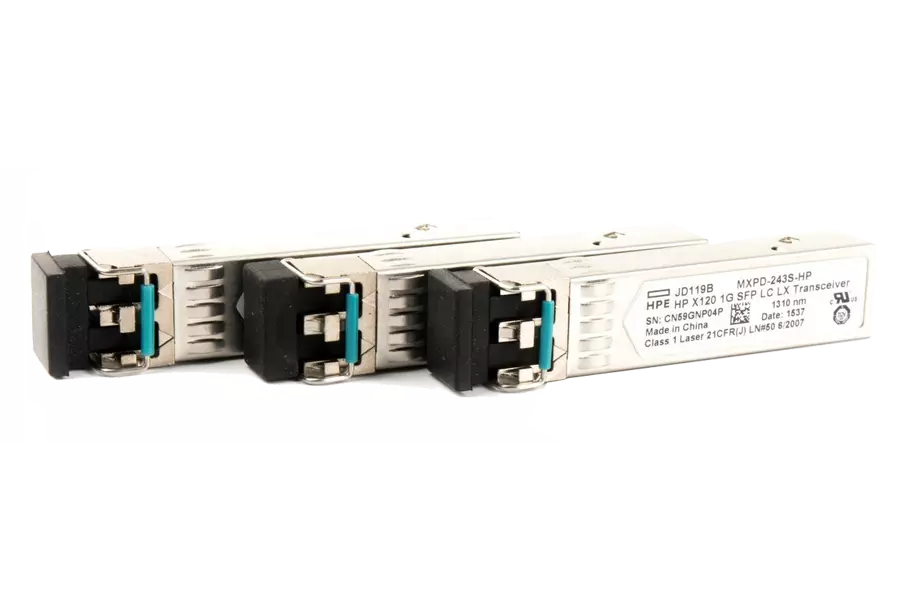

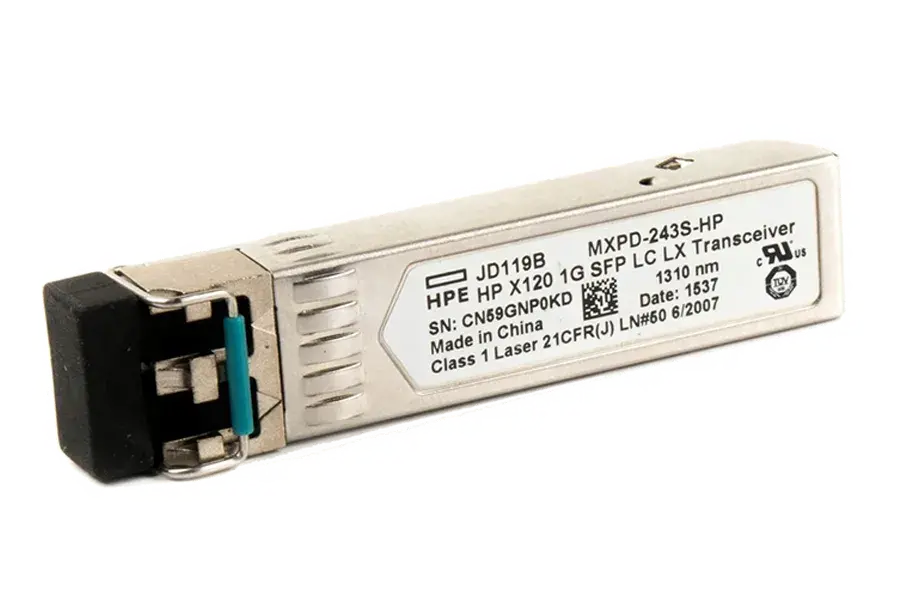

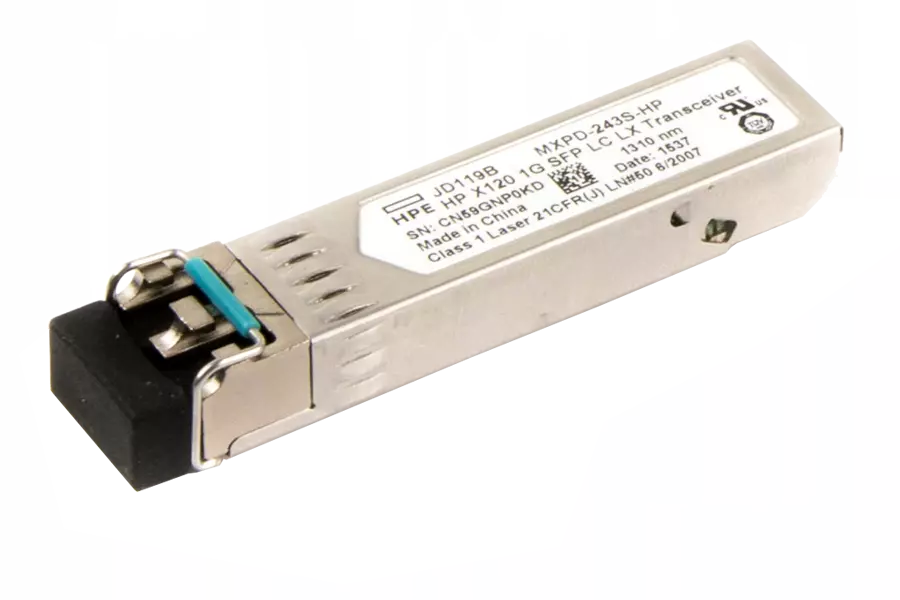

HPE X120 1G SFP LC LX Transceiver

Brand : HP

Model : JD119B

Key Features

1 x SFP 1000BASE-LX Port
LC Connector Type
1300 nm Wavelength
Single or Multimode Support
1804' Maximum Distance (Multimode)
6.2 mi Maximum Distance (Singlemode)
Up to 1.0 W Power Consumption

With a single SFP 1000BASE-LX port, the X120 1G SFP LC LX Transceiver from HP is capable of emitting signals at distances of up to 1804' in a multimode configuration and up to 6.2 miles in a single mode configuration. Additionally, this transceiver supports a 1300 nm wavelength and has a maximum power consumption of 1.0 W.

LC connector type
Supports either Single mode or multimode cable type
Supports up to 1804' maximum multimode distance
Supports up to 6.2 mi maximum single mode distance

Specifications

Type : HP X120 1G SFP LC LX Transceiver
Ports : 1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)
Connector type : LC
Wavelength : 1300 nm
Cabling distance (maximum) :
550m for Multimode
10km for Singlemode
Cable type : Either single mode or multimode
Fiber type : Both
Power consumption typical : 0.8 W
Power consumption maximum : 1.0 W
Dimensions : 2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
Weight : 0.04 lb.
