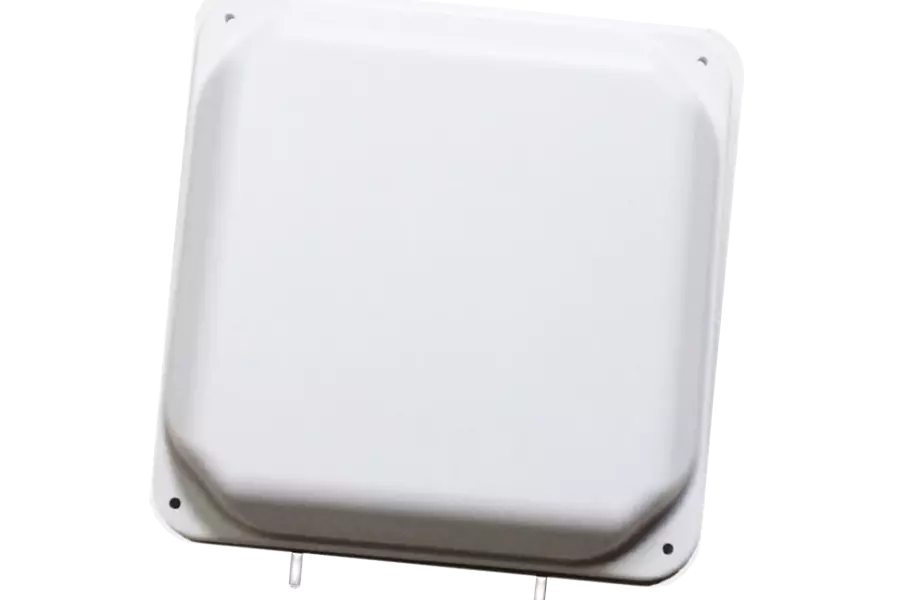

HPE Aruba Indoor/Outdoor MIMO Antenna AP-Antenna- 282.4/5G 8dBi 2x2 Panel

AP-ANT-28 Dual Band 60x60deg 7.5dBi +/- 45 Pol 2 Element MIMO 2xRPSMA Pigtail Antenna

Brand : Aruba

Model : JW013A

AP-ANT-28 is a dual-polarized antenna with 60° H x 60° V beamwidths. This antenna is well suited for 2.4-GHz and 5-GHz sector coverage for Wi-Fi access.

FREQUENCY RANGE/PEAK GAIN

4.9-6.0 GHz/7.5 dBi
2.4-2.5 GHz/7.5 dBi

DIMENSIONS

197.5 mm x 197.5 mm x 34.5 mm (7.5” x 7.5” x 1.2”)

POLARIZATION

Slant +/- 45°

WEIGHT

489 g (1.1 lbs)

BEAMWIDTH

Horizontal plane: 60°
Vertical plane: 60°

HOUSING

Housing: Aluminum
Radome: Plastic

IMPEDANCE

50 ohms

PIGTAIL CABLES

Terminated RP-SMA male 75 cm (30 “)

MAXIMUM INPUT POWER

6 watts

OPERATING TEMPERATURE

-45° C to +65° C

VSWR

2:1 max

INSTALLATION HARDWARE

Ships with wall anchors
Azimuth/elevation mount kit for wall and pole sold separately as AP-ANT-MNT-3
