Category : Aruba Accessories

HPE Aruba AP-Antenna-1W 2.4/5GHz 4/6dBi Omni

AP-ANT-1W 2.4-2.5GHz (4dBi)/4.9-5.875GHz (6dBi) Hi Gain Dual-band Omni-Dir Indoor Antenna

Brand : Aruba

Model : JW009A

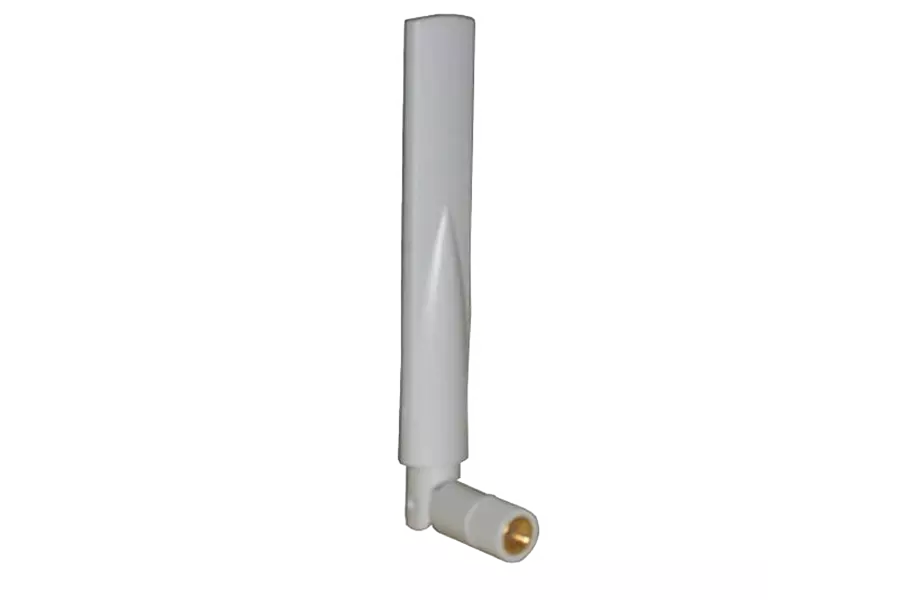

The AP-ANT-1W is a high-performance, dual band, omnidirectional, indoor antenna ideally designed for multifunction access points that require an omnidirectional coverage pattern for WLAN service delivery or air monitoring on both the 2.4 GHz and 5 GHz bands. AP-ANT-1W has an articulating mount, providing flexibility in deployment and direct connection to Aruba access points with an onboard RP-SMA connector. The AP-ANT-1W is the preferred choice for multi-purpose service deployment or wireless intrusion prevention (WIP). It is offered in two colors to match the colors of Aruba indoor access points: the AP-ANT-1W antenna in white.

FREQUENCY/MAX GAIN

2.4-2.5 GHz (3.8 dBi)
4.9-5.875 GHz (5.8 dBi)

POLARIZATION

Linear, vertical. Omnidirectional patterns at all frequencies with increased gain in mid and upper 5 GHz bands

BEAMWIDTH

2.4-2.5 GHz
- - E-Plane: 50 degrees
- - H-Plane: 360 degrees
4.9-5.875 GHz
- - E-Plane: 25 degrees
- - H-Plane 360: degrees

IMPEDANCE

50 ohms

MAXIMUM INPUT POWER

2 watts

VSWR (MINIMUM PERFORMANCE)

< 2.0:1

DIMENSIONS (INCHES/CENTIMETERS)

0.75” (1.9 cm) x 1.54” (3.9 cm) x 5.00” (12.7 cm)

HOUSING

ABS, UV resistant

FLY CABLE LENGTH/CONNECTOR

Articulating mount with built-in RP-SMA

OPERATING/STORAGE TEMPERATURE

-10° C to +55° C (+14° F to +131° F)

INSTALLATION HARDWARE

N/A – antenna mounts directly to an Aruba AP
