Category : D-link Accessories

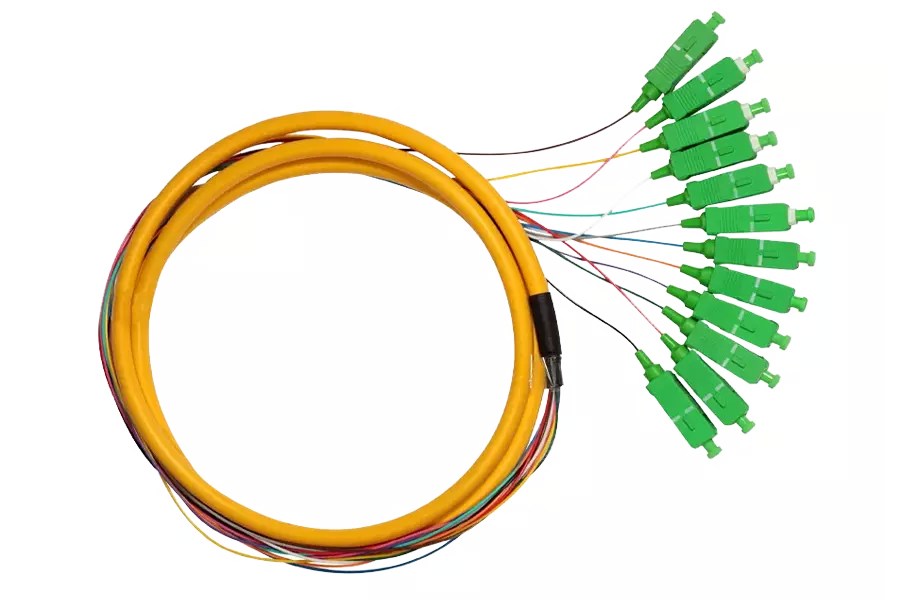

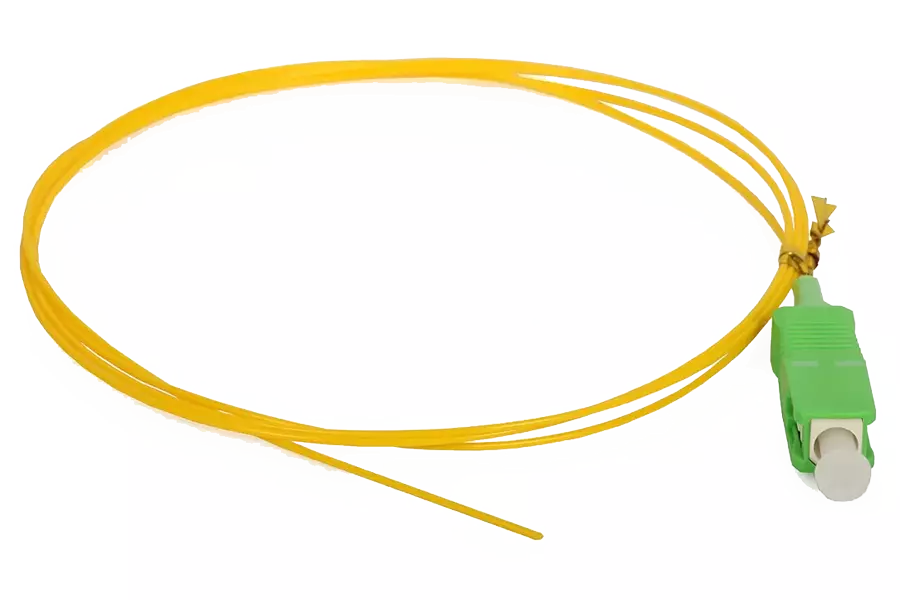

D-Link Fiber Pigtail Cable NCB-FM51S-SC-1

Brand : D-Link

Model : NCB-FM51S-SC-1

D-Link offers quality pigtails which are single ended with connectors. D-Link pigtails come with good end face geometry, full standard optical specifications, precise length and tolerances. The pre-polished pigtails give the quality, confidence and convenience to be installed and spliced in the field.

Features

Adopts high precision ceramic ferrule with good concentricity.
Advanced termination facilities & process , deliver good geometry characteristics of apex offset & radius of curvature & fiber height.
100% inspected for optical characteristics & fiber end face finish
Low insertion loss & return loss, clean and scratch-free end faces
Good performance endurance under circumstances changing.

Specifications

Connector Type : SC/ST/FC/LC/MTRJ
Optical Fiber :
- Corning single-mode : G652D, G657A, G657B
- Corning multi-mode : OM1, OM2, OM3, OM4
Cable Type :
- PVC & LSZH (Low Smoking Zero Halogen) on request
- 0.9mm/2.0mm/3.0mm Simplex & Duplex
Cable Color, Length : Yellow for single mode, orange for multi-mode & aqua for OM3 1m, 2m and 3m. Other lengths on request.
Optical Specification
- Insertion Loss
  - Typical: ?0.2dB, Max. 0.3dB (MTRJ: Max. 0.5dB)
  - Typical: ?0.2dB, Max. 0.3dB (MTRJ: Max. 0.5dB)
- Return Loss
  - PC?45dB, UPC?50 dB, APC?60dB
  - ?30dB
Mechanical Specification
- Ferrule : Ceramic, (MTRJ: PS-Polyphenylene Sulphide)
- Apex Offset : < 50um
- Fiber Height : ±100nm
- Radius of Curvature : 7mm R < 25mm(Excluding MTRJ)
- Repeatability : ?0.2dB 1,000 times mating cycles
Working Temperature : -40ºC ~ +85ºC
Storage Temperature : -40ºC ~ +85ºC
