Category : D-link Accessories

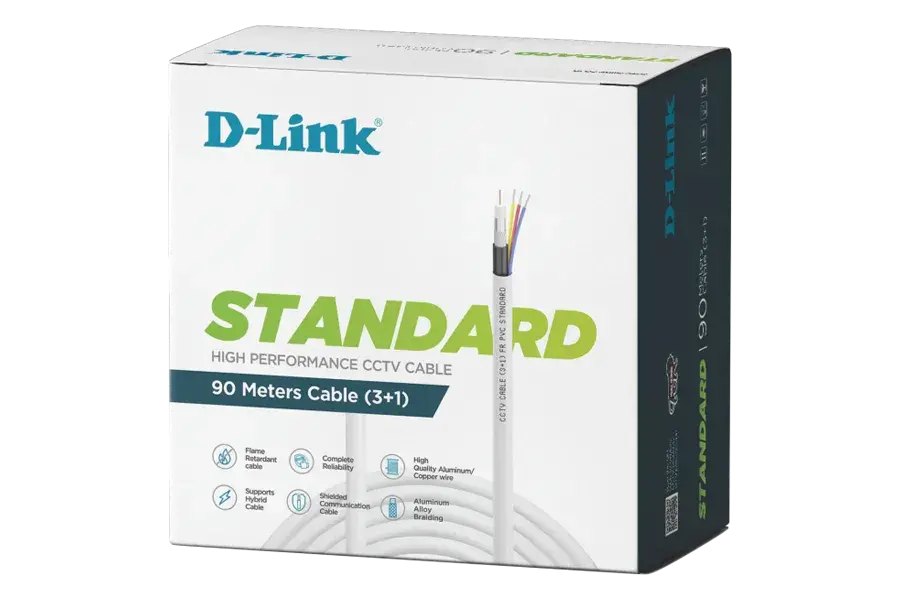

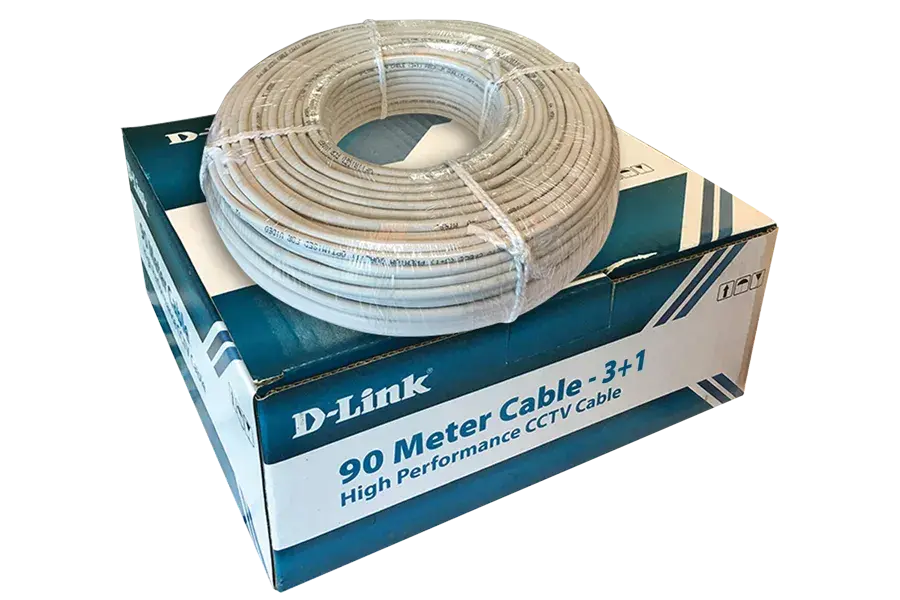

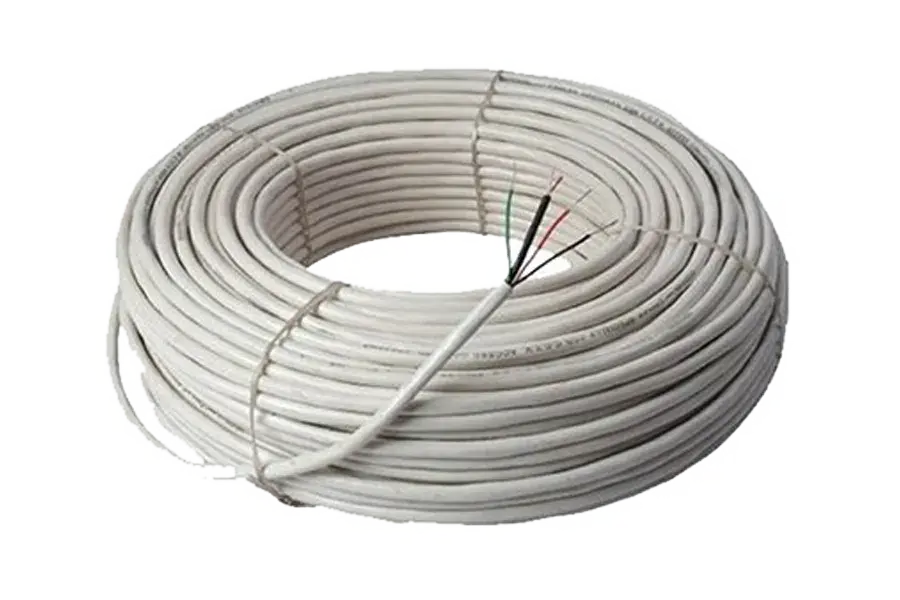

D-Link 90m Standard CCTV cable DCC-CAL-90

D-Link 90m Standard CCTV cable DCC-CAL-90

Brand : D-Link

Model : DCC-CAL-90

Enquiry Us Contact Now

Key Features

  • Aluminum Bradding
  • Flame Retardant cable
  • Supports Hybrid cable

Specifications

CCTV cable

  • Color & Material of Outer Sheath : FR PVC_White (IEC 60332-1)
  • Cable Diameter (Oval) : 5.8+ /- 0.4mm
  • Jacket Thickness : 0.75+/ - 0.2mm

COAXIAL Cable

  • Inner Conductor : Copper
  • No. of Conductors : 1
  • Dielectric : Solid PE
  • Color : Natural
  • Diameter : 0.51 +/- 0.03 mm
  • Thickness : 1.42+/- 0.2mm
  • Shield : 6mm (Aluminum Myler tape)
  • Shield - Braiding : Aluminum Alloy Braiding
  • Dia. of Braid Wire : 0.11 +/- 0.02mm
  • No. of Braiding Wires : 48
  • Coax jacket : PVC Type ST1
  • Colour : Black
  • Thickness : 0.45 +/ - 0.02mm
  • III) Insulated Cores : Type A
  • Core Colour : Red, Yellow, Grey

CONDUCTOR

  • No. of Strands : 14
  • Strand Diameter : 0.1+/- 0.02 mm
  • Insulation : PVC Type A
  • Thickness (Average) : 0.50 +/- 0.2mm
  • Diameter (Average) : 1.42+/- 0.2mm
