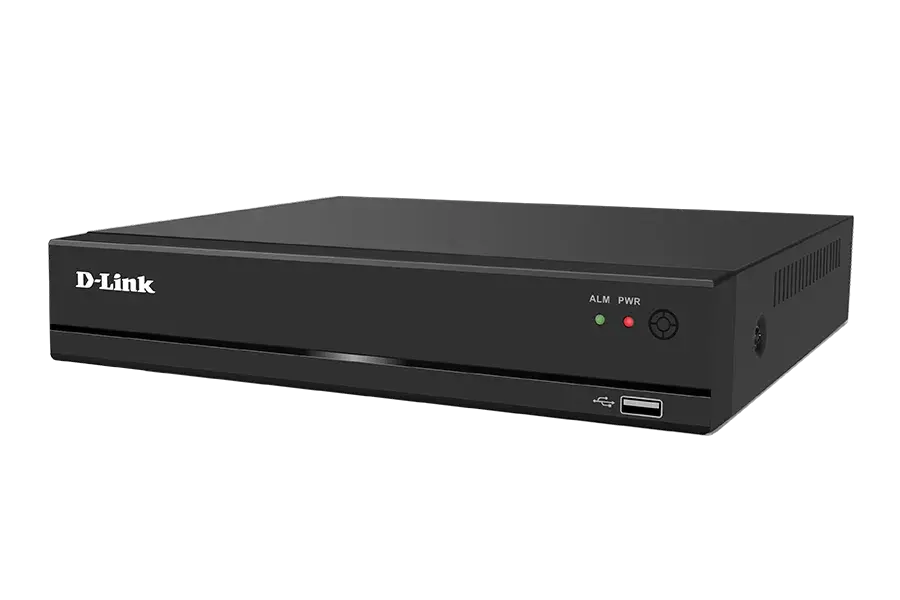

D-Link 8CH, 1 SATA H.265+ DVR DVR-F2108-M5 Digital Video Recorder
D-Link 8CH, 1 SATA H.265+ DVR DVR-F2108-M5 Digital Video Recorder
Enquiry Us Contact Now8 CH, 1SATA
Supports AHD/TVI/CVI/CVBS /IP Cameras
Supports AHD/TVI Cameras upto 8MP
Supports H.265+/H.265/H.264+/H.264
Supports Smart Playback & Analytics
Supports 2 extra IP ch
Supports 3G/4G Wi-Fi
Google drive & Dropbox Cloud Storage
Supports video quality detection (VQD)
Specifications
VIDEO & AUDIO INPUT
- Video Input : 8ch BNC interface (1.0Vp-p, 75 ?)
- TVI /AHD : 8MP,5MP,4MP,1080P, 720P
- CVI : 4MP,1080P, 720P
- IPC : Up to 8ch 8MP
- Audio Input : 4-ch, RCA (2.0 Vp-p, 1 K?)
- Two-way Talk : 1-ch, multiplex with Audio Input (RCA)
VIDEO & AUDIO OUTPUT
- HDMI : 1ch, resolution: 4K (3840×2160)/30Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
- VGA : 1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
- CVBS : 1-ch, PAL:704x576, NTSC:704x480
- Audio Output : 1-ch, RCA (Linear, 1k?)
RECORDING
- Compression : H.264/H.264+/ H.265/H.265+
- Resolution : 8MP@7fps,8MP lite@15fps,5MP@12fps,4MP@15fps,1080P/720P/960H/D1@25fps?P?/30fps?N?
- Frame Rate(fps) : 1fps-25fps (PAL) / 30fps (NTSC)
- Video Bit Rate : 11Kbps~ 10Mbps
- Record Mode : Manual, Schedule, Alarm
- Audio Compression : G.711a
- Audio Bit Rate : 64Kbps
PLAYBACK & BACKUP
- Playback Mode : Smart Playback/Normal/Time Division/ Label/ Event/ Picture Playback
- Playback Rate : 8CH 8MP lite/5MP/4MP/1080P Playback
- Backup Mode : USB Device/Network
SMART FUNCTION
- Smart Detection for Analog : 8CH line crossing detection, area Intrusion
- Smart Playback for Analog : line crossing detection, area Intrusion
- Cloud Storage : Support
- Cloud Upgrade : Support
NETWORK
- Ethernet : 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Network Function : HTTPs,HTTP,TCP/IP,IPv4,UPnP,Onvif2.6,RTSP,RTCP,UDP,SMTP,SNMP,Multicast,IGMP,NTP,DHCP,DNS,DDNS, FTP, P2P
- Smart Phone : IOS (iPhone, iPad), Android (Phone, Pad)
HARD DISK
- SATA : 1 HDD
- Capacity : Up to 10TB capacity for each HDD
EXTERNAL INTERFACE
- Serial Interface : RS-485
- USB Interface : 2 × USB
GENERAL
- Power Supply : DC12V,2A
- Power Consumption : ?15W (without HDD)
- Working Environment : -10°C~+55°C / 10%~90%RH
- Dimension (W×D×H) : 250 x 230 x 45mm
- Weight (without HDD) : 1.5kg
- Certification : CE,BIS
SYSTEM MANAGEMENT
- Mobile Software : D-LINK SMART CCTV App
- Desktop Software : DSVS (D-LINK Smart Video Surveillance)
- System Requirement for Web Interface : IE
