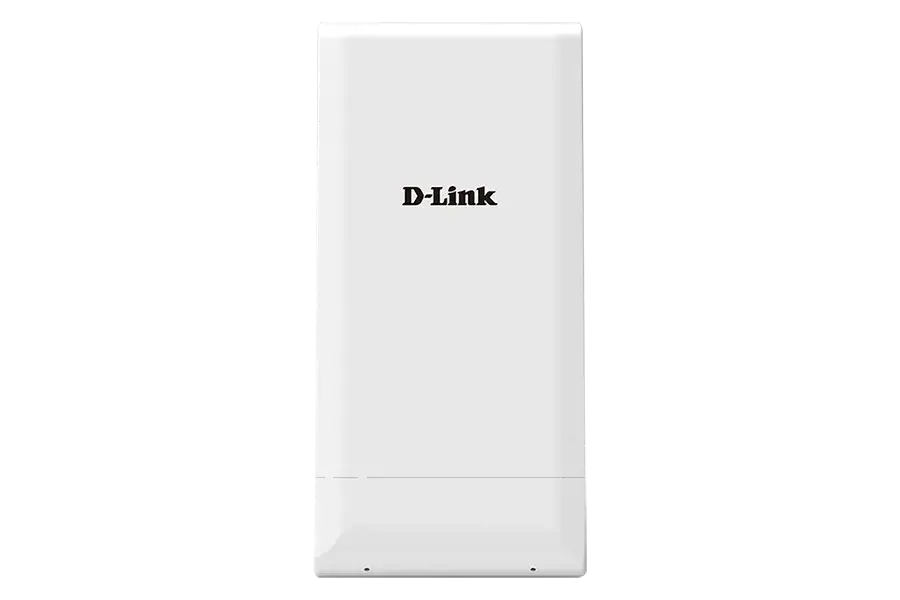

D-Link 802.11a/n Outdoor Short-Distance Wireless Bridge DAP-F3704-I

A powerful outdoor wireless broadband Point-to-Point and Point-to-Multipoint Access Point (AP).

Brand : D-Link

Model : DAP-F3704-I

Enquiry Us Contact Now

DAP-F3704-I is a powerful wireless broadband access and transmission product. This product's built in smart wireless technology incorporates a number of industry-leading core technologies including MIMO-OFDM, TDMA, Auto ACK etc. to ensure high throughput and reliable wireless signal coverage under various application scenarios.

TDMA technology allows each device to work in a set time slot and overcomes the limitations of the traditional Wi-Fi can only transfer a few hundred meters, it can overcome the shortcomings of the 802.11 protocol, supporting remote point to multi-point communication.

DAP-F37044 has a maximum transmission rate of 300Mbps, excellent long- distance transmission performance, and can transmit multi-channel HD videos. It can be used as point to point and point to multi-point remote access wireless  bridge. This model can be widely used in below various applications:

• Wireless video surveillance (Transportation, smart city, oil and gas pipelines, forest fire, residential areas and other key areas of monitoring)
• Wireless video / data transmission and wireless coverage in railway, electric power and other industries
• Wireless backhaul network construction.

Technical Specifications

Hardware Features

• Processor : Atheros ARQ344
• Memory : 64MB DRAM
• Flash : 8MB
• Interfaces :
  • 1* 10/100 Mbps Ethernet Port (LAN / PoE)
  • 1* 10/100 Mbps Ethernet Port (LAN 1)
  • Reset button
• Power Requirement : 24VDC/0.5A Passive PoE Adapter
• Antenna Gain : 10dBi
• Beam width : H:65°, V:18°
• Protection :
  • 8KV ESD Protection
  • 4KV Lightening Protection
• Enclosure :
  • Outdoor UV Stabilized Plastic
  • IP65

Wireless Features

• Wireless Standard : IEEE 802.11 a/n
• Operating Frequency :
  • 5.150 ~ 5.350Ghz
  • 5.470 ~ 5.875Ghz
• Maximum transmit Power : 24dBm
• Wireless Speed : Up to 300 Mbps
• Wireless Security : WPA-PSK, WPA2-PSK, 802.1x
• Smart Wireless Technology :
  • TDMA Support
  • 5/10/20/40Mhz bandwidth support
  • Intelligent rate control
  • Jtrans support: Co-channel interference avoid
• Wireless Configuration :
  • Auto Ack-Timeout support
  • Auto Channel Support
  • Transmit Power Selection
  • SSID Broadcast enable / Disable
  • Selectable Max. Transmit Rate
  • Wi-Fi Multimedia
• Wireless Advance :
  • Manual distance setup
  • data frames Aggregation
  • Multicast support
  • Client isolation
  • Max. station Limit
  • Signal strength LED value support

Software Features

• Network Mode : Bridge, Router
• Operation Mode : Bridge: Access Point, Station, WDS Access Point, WDS Station
• Network Configuration :
  • WAN Type: Static IP, DHCP, PPPoE
  • LAN: Static, DHCP
  • VLAN Support
  • Firewall: IP / MAC Filter
  • Traffic Shaping
• Management :
  • Web-based configuration
  • AC remote management
  • SNMP Management
• System Tools :
  • Ping
  • Traceroute
  • Reboot Schedule
  • NTP
  • Ping Watchdog
  • Syslog
  • Spectrum Analyzer
  • Throughput testing (Iperf)
• Monitors: Throughput, Interfaces, Routes table,Bridge table, ARP table, AP information, Syslog
• Firmware upgrade :
  • Web-based upgrade
  • Remote AC central upgrade

Others

• Weight : 0.25kg
• Dimensions (LxWxH) : 200 x 98.8 x 45.5 (mm)
• Environment
• Operating temperature: -30°C ~ 70°C
• Storage temperature: -40°C ~ 85°C
• Operating Humidity: 5% ~ 95% RH non-condensing
• Max. Power consumption : <= 8W
• Mounting Kit : Pole Mounting Kit
• Package Contents :
• DAP-F3704-|
• 24V 0.5A PoE Adapter
• Power Cord
• Clamp
• QlG
• Warranty Card
