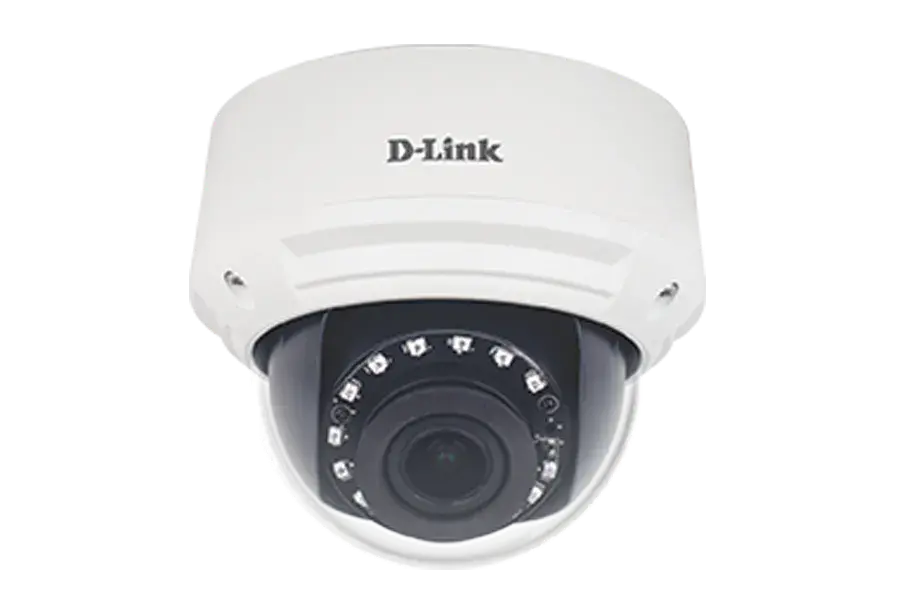

D-Link 4MP Day & Night Outdoor Varifocal Dome Network Camera DCS-F4624
D-Link 4MP Day & Night Outdoor Varifocal Dome Network Camera DCS-F4624
Enquiry Us Contact Now- 4MP Full HD Camera
- 1920 X 1080 @30fps
- IR distance up to 20m
- Varifocal lens 2.8-12mm
- Outdoor application - IP66
- Corridor mode
- Smart de-fog
- Region of Interest
- SD/SDHC/SDXC Slot, max 64GB
- Audio Support
- Alarm Port
- IK-10
Specifications
Camera Specification
- Camera Hardware Profile
- 1/2.9”2MP Progressive Scan CMOS
- Focal Length: Varifocal lens 2.8-12mm
- Up to 20 meter IR illumination distance
- Aperture : F2.2
- Built-in Infrared-Cut Removable (ICR) Filter module,Smart IR support
- Angle of view:
- (H) 90° ~ 35°
- (V) 48° ~ 20°
- Minimum illumination: Color 0.01Lux; IR ON 0 Lux
- Shutter Speed: 1/5-1/20000
- Minimum object distance : 0.3m
- Digital zoom : 10x
- Camera Housing
- IP66 compliant weatherproof housing
- Image Features
- Configurable image size, quality, frame rate, VBR/CBR (500kbps ~ 12 Mbps)
- Configurable privacy mask zones :Total zones 4
- Time stamp and text overlays
- Customized text overlay
- Digital Noise reduction with 2D and 3D technology
- No. of zones configurable for ROI : 8
- Configurable Exposure, Brightness, Saturation, Contrast, Sharpness, White Balance, Rotate mode, Corridor mode
- Image Enhancement with WDR, HLC, BLC sion • JPEG for still images
- Video Compression
- Simultaneous H.264 (BP/MP/HP) /MJPEG format compres
- H.264 multicast streaming
- Video Resolution
- Main Stream :1920x1080/ 1280x960 / 1280x720
- Second Stream : D1 to QVGA
- Frame Rate : Selectable up to 30 FPS
- Vandal Proof (IK-10) : Yes
- External Device Interfaces
- 10/100 BASET- X Ethernet port with PoE
- 1ch Audio in & 1ch Audio out
- 1ch Alarm in & 1ch Alarm out
- BNC Output
- Micro SD/ SDHC/ SDXC Slot, max 64GB
Network
- Network Protocols
- IPv6
- IPv4
- TCP/IP
- UDP
- ICMP
- DHCP client
- NTP client
- DNS client
- SMTP client
- HTTP/HTTPS
- PPPoE
- UPnP
- RTP/RTSP
- Multicast
- ONVIF compliant
- DDNS client
- Security
- HTTP and RTSP authentication
- HTTPS encryption for web access hardware watchdog
- Administrator and user group protection
- Remote client access control
System Management
- System Requirements for Web Interface
- IE 11, Chrome, Firefox
- Event Management
- Motion detection, Video Loss
- Alerts to SMTP client
- Event notification and uploading of snapshots via e-mail
- Multiple event notifications only on mails
- Remote Management
- Configuration interface accessible via web browser
- Take snapshots
- OS and Mobile Support
- Windows 7/8/XP/Vista/2000 and higher
- Android
- DCMS System Requirement
- Operating System:Windows 7/8/XP/Vista/2000 and higher
- DCMS Software Function
- Control and manage up to 64 channels
General
- Weight : 900g
- Power : DC 12V /PoE
- Power Consumption : 3W (IR LED OFF)5; W (IR LED ON)
- Temperature : Operating: -40°C ~ 60°C
- Humidity : Operating: 0% ~ 90% RH
- Certification : CE & FCC
- Dimension : 130×112mm
Order Information
- DCS-F4622 : 2MP Full HD Day & Night Varifocal Outdoor Dome Network Camera
- Optional Accessory
- DCS-FCA623 : PendaOunt Mount
- DCS-FCA633 : Back box
- DCS-FCA624 : Wall Mount (Junction box / Corner mount bracket / Pole mount bracket)
- DCS-FCA633B : Back Box
