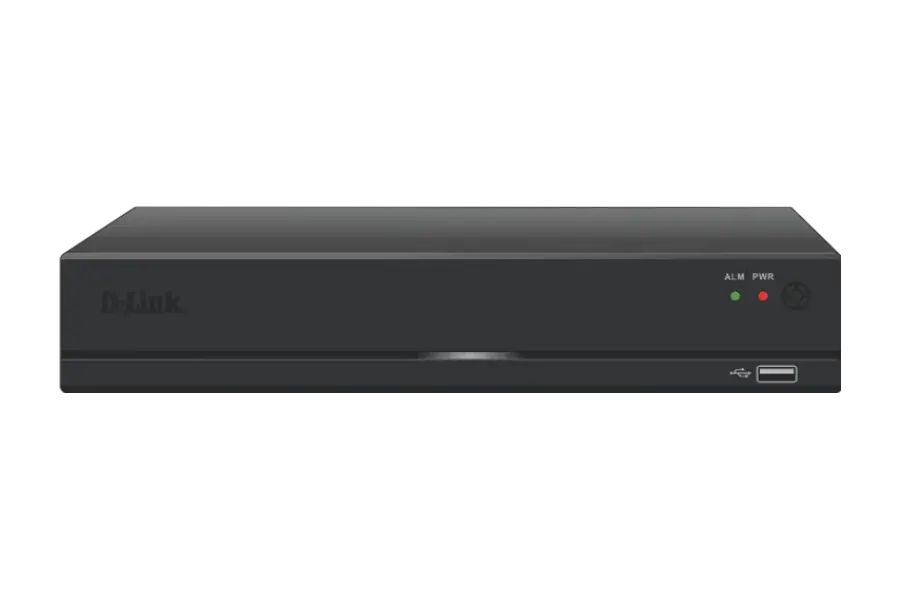

D-Link 4ch Network Video Recorder DNR-F5104-M5
D-Link 4ch Network Video Recorder DNR-F5104-M5
Enquiry Us Contact Now- 4CH, 1 SATA NVR
- Support up to 5MP IPC
- Support H.265+/H.265/H.264+/H.264
- Support smart playback & analytics
- Support 3G/4G Wi-Fi Connectivity
- Support Google Drive & Dropbox Cloud storage
- Support Onvif 2.6
Specifications
Video & Audio Input
- IP Video Input : 4ch
- Audio Input : N/A
Video & Audio Output
- HDMI : 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
- VGA : 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
- Audio Output : N/A
Recording
- Compression : H.265+/H.265 /H.264+/H.264
- Resolution : 5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF
Playback & Backup
- Playback Mode : Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback
- Decoding Capability : 4CH@1080P(25fps)
- Backup Mode : USB Device/Network
Advanced Features
- Smart Detection : Line crossing, Area Intrusion, Fast moving, Unattached Object, Object Missing
- Smart Playback : Line Crossing/Area Intrusion /Motion Detection
- Cloud Storage : Support
- Cloud Upgrade : Support
Network
- Incoming Bandwidth : 30Mbps
- Outgoing Bandwidth : 20Mbps
- Ethernet : 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
- Network Compatibility : HTTP, HTTPS, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, DDNS, FTP, P2P, ONVIF 2.6
- Smart Phone : IOS (iPhone, iPad), Android (Phone, Pad)
Hard Disk
- SATA : 1 SATA interface
- Capacity : Up to 8TB capacity for each HDD
External Interface
- USB Interface :
- Front panel: 1 × USB 2.0
- Rear panel: 1 × USB 2.0
General
- Power Supply : DC12V/1.5A
- Power Consumption : ?10W (without HDD)
- Working Environment : -10°C~+55°C / 10%~90%RH
- Dimension (W×D×H) : 250x230x45mm
- Weight : ?1.5Kg
- Certification : CE, BIS
System Management
- Mobile Software : D-Link Smart CCTV App
- Desktop Software : DSVS (D-Link Smart Video Surveillance)
- System Requirement for Web Interface : IE
