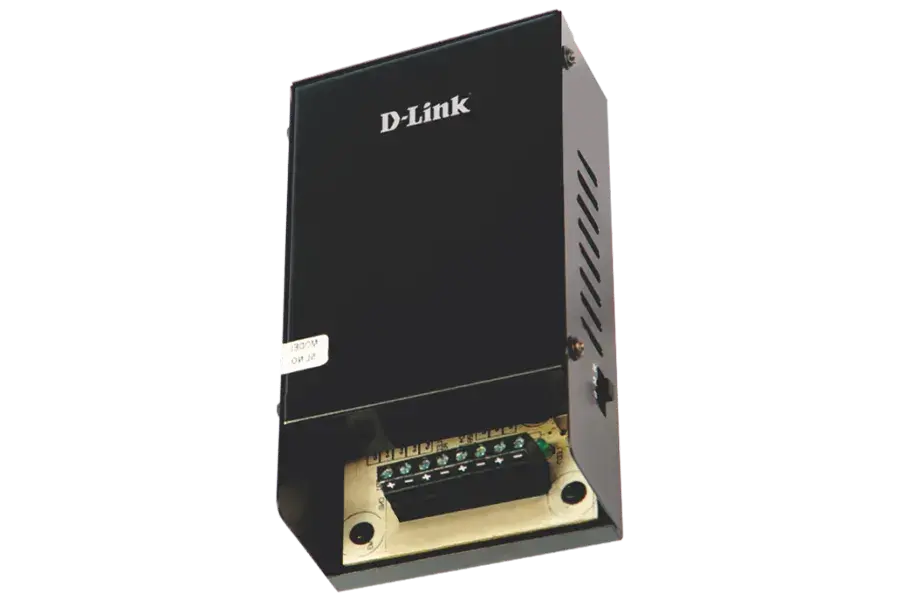

D-Link 4CH CCTV Power Supply DPS-F1B04
D-Link 4CH CCTV Power Supply DPS-F1B04
Enquiry Us Contact NowKey Features
- Highly Efficient & Consumes Low Power
- Input Voltage-110VAC-300VAC 47/53Hz
- Output Voltage - 12V- 1 AMP max per channel
- Over Heat & Voltage Protection
- Over Load Protection
- Highly Integrated SMPS Switcher I.C Design
- Short Circuit Auto Restart
- Stabilized Output, Low Interference, Surge Protected
Specifications
- Input Voltage Range : 110VAC~300VAC
- Frequency : 47Hz - 53Hz
- Output Voltage : 12.0 VDC
- Line Regulation : 11.40-12.60VDC
- Setup Rise time : < 10 mSec. at 230VAC input.
- Hold up time : > 10 mSec. at 110VAC Input
- Inrush current : < 50A Peak @ 230VAC Cold start at 25 Deg.
- Leakage Current : <0.25mA / 265VAC
- Auto Reset : During overload and short circuit
- Input Overvoltage Protection : The power supply is withstanding upto 330VAC, without Interrupting
- Over Load Protection : Auto restart
- Ripple : <240mV
- Surge protection : 4 KV
- Efficiency : > 75% at all load conditions with complete AC input Operating Voltage (110VAC - 300VAC).
- Housing : Metallic cabinet Powder coating mat finish
- Store Temperature : -15° to +70° C ambient
- Working Humidity : 10 ~ 90% RH Non-Condensing
- Working Temperature : 0ºC to +50ºC with 3.5A, +30ºC Deg with 4.0A
