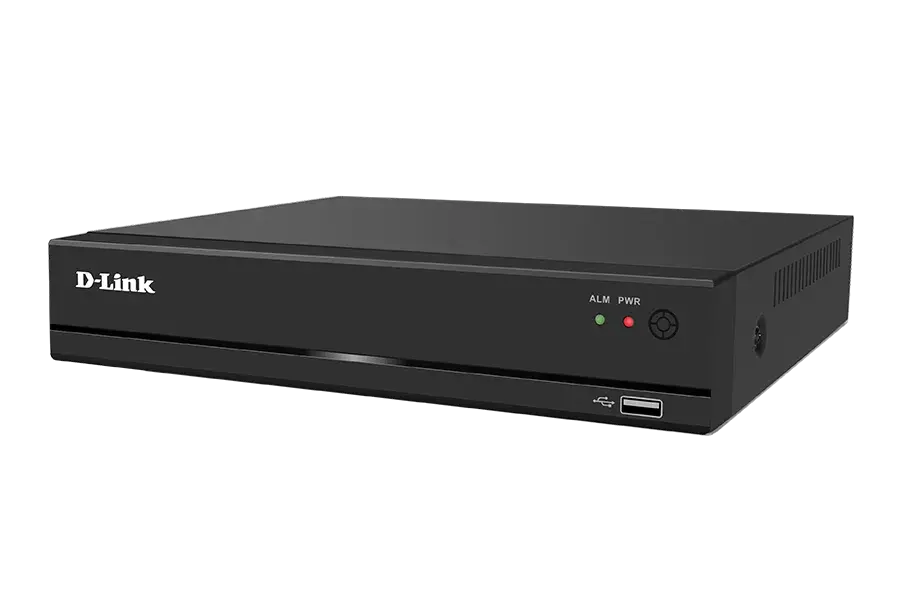

D-Link 4CH, 1 SATA H.264+ DVR DVR-F2104-M1 Digital Video Recorder
D-Link 4CH, 1 SATA H.264+ DVR DVR-F2104-M1 Digital Video Recorder
Enquiry Us Contact NowKey Features
- 4 CH, 1SATA
- Supports AHD/TVI/CVI/CVBS /IP Cameras
- Supports AHD/TVI Cameras upto 2MP
- Supports H.264+/H.264
- Supports Smart Playback & Analytics
- Supports 2 extra IP ch
- Supports 3G/4G Wi-Fi
- Google drive & Dropbox Cloud Storage
Specifications
VIDEO & AUDIO INPUT
- Video Input : 4ch BNC interface (1.0Vp-p, 75 ?)
- TVI / CVI /AHD : 1080P, 720P
- IPC : Up to 6ch 2MP
- Audio Input : 1-ch, RCA (2.0 Vp-p, 1 K?)
- Two way Talk : 1-ch, multiplex with Audio Input (RCA)
VIDEO & AUDIO OUTPUT
- HDMI : 1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
- VGA : 1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/ 60Hz,1024×768/60Hz
- CVBS output : NA
- Audio Output : 1-ch, RCA (Linear, 1k?)
RECORDING
- Compression : H.264/H.264+
- Resolution : Recording in priority: 4ch 1080P lite/960H1/D1/CIF real time
- Frame Rate(fps) : 1fps-25fps (PAL) / 30fps (NTSC)
- Video Bit Rate : 11Kbps-2707Kbps
- Record Mode : Manual, Schedule, Alarm
- Audio Compression : G.711a
- Audio Bit Rate : 64Kbps
PLAYBACK & BACKUP
- Playback Mode : Smart Playback/Normal/Time Division/ Label/ Event/ Picture Playback
- Playback Rate : 4ch Playback
- Backup Mode : USB Device/Network
SMART FUNCTION
- Smart Detection for Analog : 1CH line crossing detection, area Intrusion
- Smart Playback for Analog : line crossing detection, area Intrusion
- Cloud Storage : Support
- Cloud Upgrade : Support
NETWORK
- Ethernet : 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Network Function : HTTPs,HTTP,TCP/IP,IPv4,UPnP,Onvif2.6,RTSP,RTCP,UDP,SMTP,SNMP,Multicast,IGMP,NTP,DHCP,DNS,DDNS, FTP, P2P
- Smart Phone : IOS (iPhone, iPad), Android (Phone, Pad)
HARD DISK
- SATA : 1 HDD
- Capacity : Up to 8TB capacity for each HDD
EXTERNAL INTERFACE
- Serial Interface : NA
- USB Interface : 2 × USB
GENERAL
- Power Supply : DC12V, 1.5A
- Power Consumption : ?10W (without HDD)
- Working Environment : -10°C~+55°C / 10%~90%RH
- Dimension (W×D×H) : 250 x 230 x 45mm
- Weight (without HDD) : 1.5kg
- Certification : CE, BIS
SYSTEM MANAGEMENT
- Mobile Software : D-Link Smart CCTV App
- Desktop Software : DSVS (D-Link Smart Video Surveillance)
- System Requirement for Web Interface : IE
