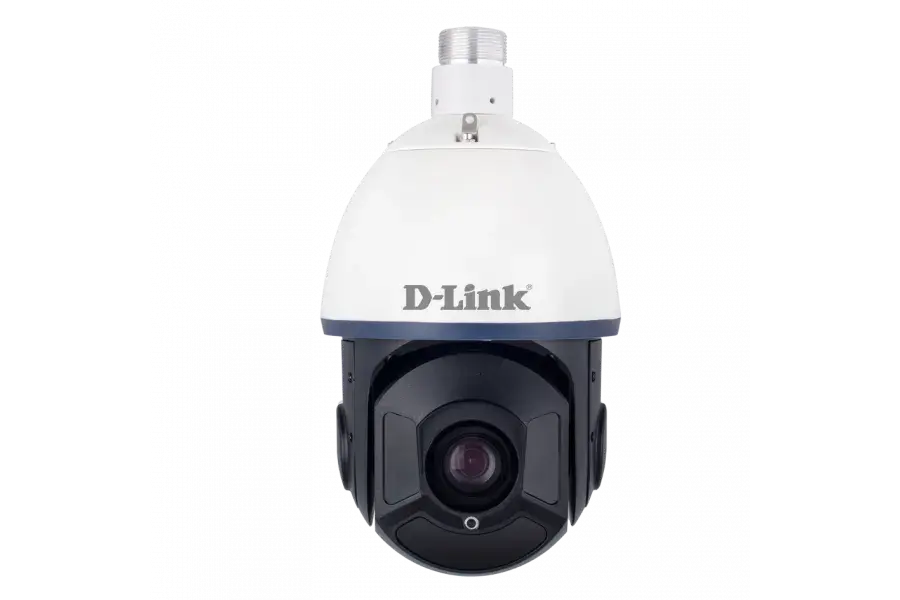

D-Link 30X 3MP High Speed Dome Network Camera DCS-F6917
D-Link 30X 3MP High Speed Dome Network Camera DCS-F6917
Enquiry Us Contact Now- 1 /2.8”progressive Scan CMOS Sensor
- 2048 X 1536 @ 25fps
- Auto Focus Zoom lens : 4.3 to 129mm
- 30X Optical Zoom & 16X Digital Zoom
- -40 to 60 deg wide temperature control
- Smart IR upto 150m
- Smart defog
- Region of Interest
- SD/ SDHC/ SDXC Slot, max 64GB
- Audio/Alarm support
Camera Specification
- Camera Hardware Profile
- 1/2.8” progressive Scan CMOS sensor
- Minimum illumination 0.01 Lux (Color); 0.001 Lux (B/W) @F1.2
- Built-in Infrared-Cut Removable (ICR) Filter
- 150 meter IR illumination distance
- 30x optical zoom, 16x digital zoom
- 4.3 to 129mm auto focus zoom lens
- Aperture F1.2
- Angle of View
- (H) 68.5° to 3.2°
- Electronic shutter 1/1 to 1/10,000 sec
- PTZ Hardware Profile
- Pan travel: 360° endless
- Tilt travel: 0° to 180°
- Presets: 300 points
- Preset Accuracy: < 0.2°
- Tilt Speed: 0.01 to 90°/s
- Pan Speed: 0.01° to 180°/s
- Tilt Preset Speed: 0.°5 to 90°/sec.
- Pan Preset Speed: 180°/s
- Scan: 12
- Track: 6
- Cruise Paths: 12
- Pan and tilt speed proportional to zoom ratio
- Resume after power loss
- 3D Positioning
- De-fog
- Electronic Image Stabilizer
- Digital Noise Reduction: 2D/3D
- Image Features
- Configurable image size, quality, frame rate, and bit rate
- Configurable privacy masks
- Time stamp and text overlays
- Configurable motion detection windows
- Configurable shutter speed, sharpness, Brightness Contrasts, Rotate, ROI
- Video Compression
- Simultaneous H.264/MJPEGofrmat compression
- H.264 multicast streaming
- JPEG for still images
- Video Resolution
- Stream 1: 2048 X 1536 @25fps suppotr1-25fps
- Stream 2: 1920 X 1080 / 1280 X 720 / D1 /VGA @25fps support
- Stream 3: 2048 X 1536/1920 X 1080 / 1280 X 720 / D1 V/ GA @not full Frame (SVC stream)
- Audio Support
- G.711
- External Device Interfaces
- 7 alarm inputs
- 2 alarm outputs
- Audio input/output
- Micro SD support up to 64GB
Network
- Network Protocols
- IPv4
- IPv6
- TCP/IP
- UDP
- ICMP
- DHCP Client
- NTP Client (D-Link)
- DNS Client
- DDNS Client (D-Link)
- SMTP
- HTTP/HTTPS
- PPPoE
- UPnP Port Forwarding
- RTSP
- IGMP
- ONVIF
- CIFS
- NFS
- FTP Client
- Security
- Password protection
- HTTPS encryption for web access
- Multilevel User Group Manager
- Custom Permission
System Management
- System Requirements for Web Interface
- Microsoft Windows 8/7/Vista/XP/2000
- Internet Explorer 7 or Higher
- Event Management
- Motion detection
- Tamper detection
- Event notification and upload snapshots/video clips via SMTP or FTP
- Multiple recording methods for easy backup
- Multiple event notification
- Remote Management
- Configuration accessible via web browser
General
- Reliability
- Hardware watchdog
- Automatic fault recovery
- Protection
- TVS4000V Lightning Protection
- Surge Protection
- Power Input : AC 24V, 2.5 A
- Max. Power Consumption : Max 40W
- OperatingTemperature : -40 to 60 °C (-40 to 140 °F)
- Weatherproof : IP-66 standard
- Humidity : < 90 % RH non-condensing
- Weight : 4.3 kg
- Certifications : CE, FCC, EN
Order Information
- DCS-F6917 : 30X 3MP High Speed Dome Network Camera
