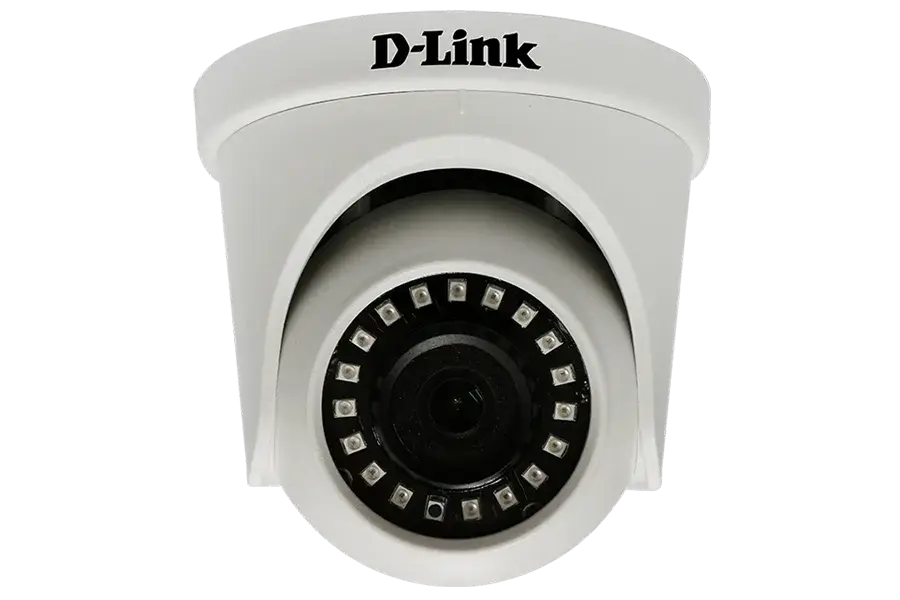

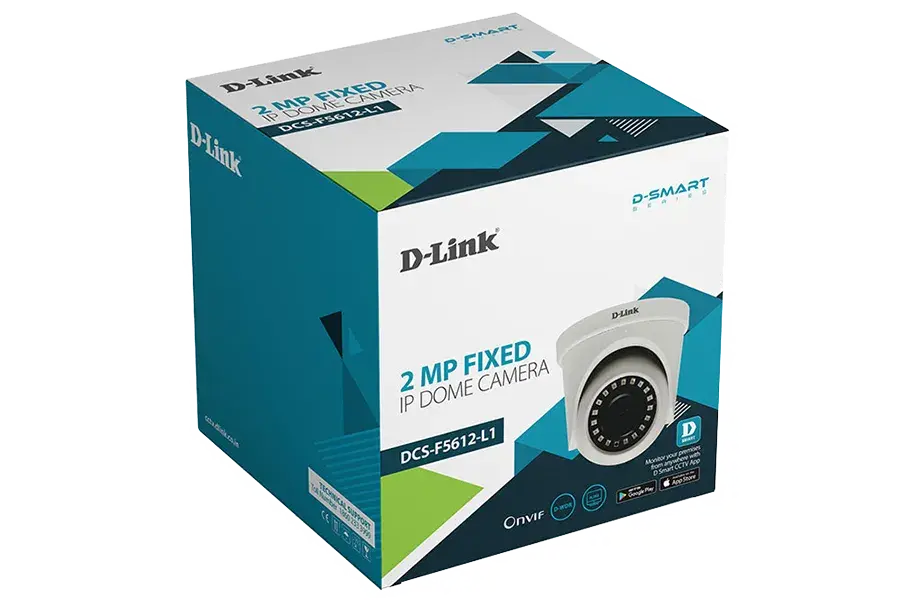

D-Link 2MP Fixed IP Dome Camera DCS-F5612-L1
D-Link 2MP Fixed IP Dome Camera DCS-F5612-L1
Enquiry Us Contact Now- 1/2.9" Progressive scan CMOS Sensor
- 3.6mm Fixed lens
- Up to 1920 x 1080 Full HD resolution
- IR Range up to 30 Mtr.
- DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
- Support Defog, ROI, BLC, HLC UPnP-TM
- Support smart functions
- Support dual stream
Specifications
CAMERA
- Image Sensor : 1/2.9" Progressive scan CMOS Sensor
- Min. Illumination : 0.01lux (Color), 0lux (IR on)
- Shutter Time : Auto/Manual, 1/3~1/10000s
- Lens : 3.6 mm@F2.0: horizontal FOV:82 °, vertical FOV:44°
- Lens Mount : M12
- Day/Night : IR cut filter with auto switch
- Wide Dynamic Range : DWDR
- Max. IR LEDs Length : 30M
- Smart IR : Support
COMPRESSION STANDARD
- Video Compression : H.264/H.265
- H.264 Codec profile : Base/Main/High profile
- H.265 Codec profile : Main profile
- Video Bit Rate : 11 Kbps ~ 5Mbps
- Max. resolution : 1920 x 1080
- Main Stream :
- 50HZ:20fps 2MP (1920*1080), 25fps 1.3MP (1280*960), 25fps 1MP (1280*720)
- 60HZ:20fps 2MP (1920*1080), 30fps 1.3MP (1280*960), 30fps 1MP (1280*720)
- Sub Stream :
- 50Hz:25fps D1(704 × 576),25fps CIF (352 × 288) 60Hz:30fps D1(704 × 480), 30fps CIF (352 × 240)
- Image Setting : Brightness/Contrast/Saturation/Hue/Sharpness
- HLC : Support
- BLC : On/Off, zone configurable
- ROI : Support
- Defog : Support
NETWORK
- Event : Motion Detection, Video Shelter
- Smart Functions : Area Intrusion, Line crossing
- Protocols :
- TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS,
- RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, IPV6
- System compatibility : Onvif 2.6, Profile S, CGI
- Security : User authentication, IP address filtering, Video mask
- Mobile Surveillance : iPhone, iPad, Android devices
INTERFACE
- Communication interface : 1 RJ45 10M / 100M Ethernet Port
GENERAL
- Operating Conditions : -30 °C ~ 60 °C (-22 °F ~ 140 °F)
- Humidity 95% or less (non-condensing)
- Power Supply : DC12V ± 10% )
- POE Supply : PoE (802.3af)
- Power Consumption : Max. 6.5W
- Weather Proof : IP66
- Dimensions : ?102X90(H) mm
- Weight (without HDD) : 420g
- Certification : CE
SYSTEM MANAGEMENT
- Mobile Software : D-Link Smart CCTV App
- Desktop Software : DSVS (D-Link Smart Video Surveillance)
- System Requirement for Web Interface : IE
