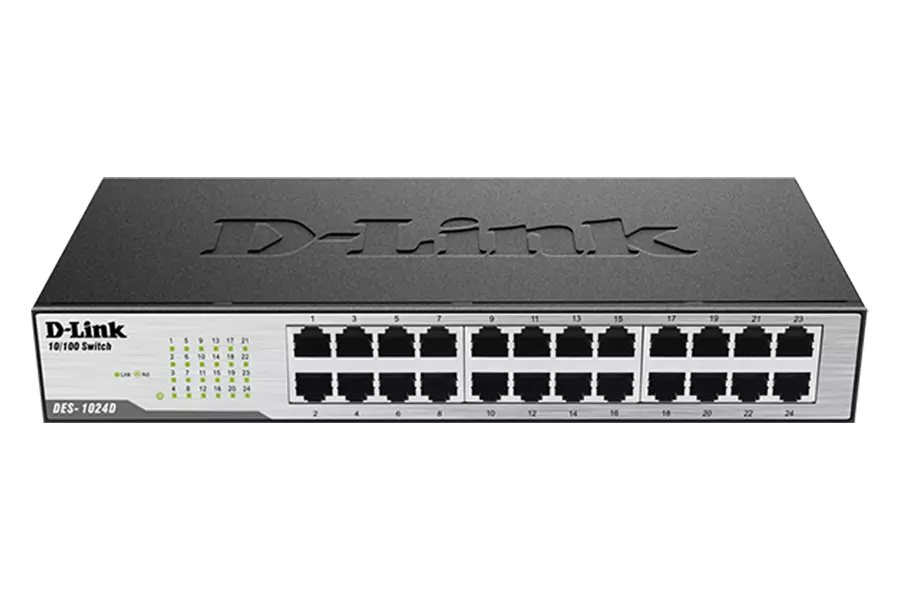

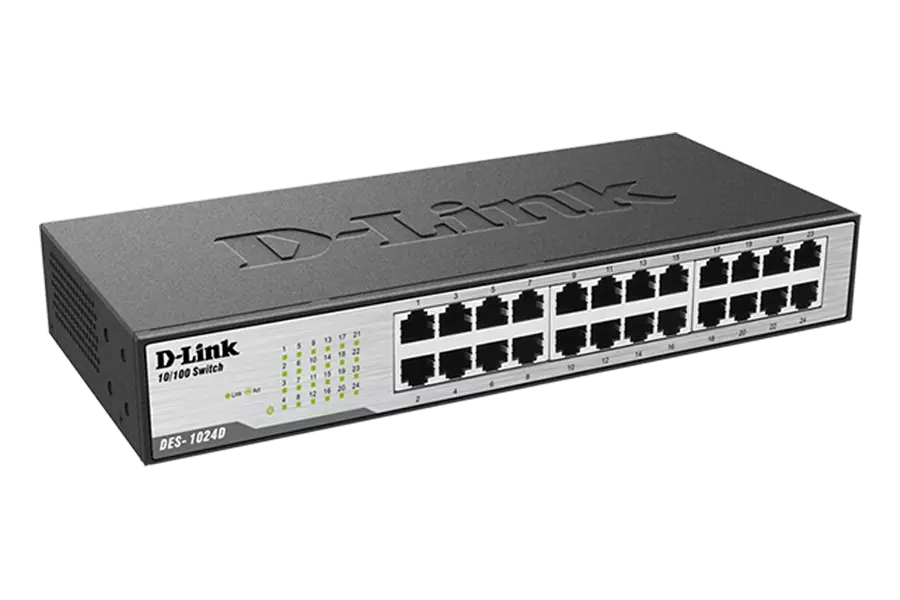

D-Link 24-Port Fast Ethernet Unmanaged Switch DES-1024D

16/24-Port Fast Ethernet Unmanaged Switches

Brand : D-Link

Model : DES-1024D

Enquiry Us Contact Now

With the D-Link 16/24-Port Fast Ethernet Unmanaged Switches, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 200 Mbps per port in full-duplex mode. Quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.

Expand and Upgrade Your Network

The DES-1016D/DES-1024D switches offer an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed networking. It provides twenty-four ports for easy expansion of your network and a quick way to upgrade your network to Fast Ethernet connectivity. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other.

Conserve Energy

The DES-1016D/DES-1024D switches help you conserve energy through IEEE802.3az EEE, which works when both the switch and its link partner are EEE-compliant devices. This power-saving feature automatically puts the switch into a low-power idle state when the switch utilization is zero, allowing you to lower your energy usage and save on your energy costs.

Designed with the Environment in Mind

The DES-1016D/DES-1024D switches use recyclable packaging that helps reduce waste, complying with the WEEE directive. It’s innovatively designed to run cool and quiet without sacrificing performance.

Product Highlights

• Eco-friendly and Economical : Low-cost, innovative design runs reliably and quietly, saving energy and cutting costs without sacrificing connectivity
• High-speed Networking : Fast Ethernet ports allow you to expand your network and connect all your devices for quick file transfers and smooth media streaming
• Saves Energy : Environmental features reduce energy consumption, cutting costs, while compliance certifications give you piece of mind

Features

Green Features

• IEEE802.3az EEE (Energy Efficient Ethernet)
• RoHS compliant

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twistedpair copper)
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• ANSI/IEEE 802.3 NWay auto-negotiation

Versatile Support

• Plug-and-play installation
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control

Technical Specifications

General

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x flow control
• IEEE 802.3az EEE function

LAN

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX compliance
• IEEE 802.3x Flow Control support

Data Transfer Rates

• Fast Ethernet
  • 100 Mbps Half-Duplex
  • 200 Mbps Full-Duplex
• Ethernet
  • 10 Mbps Half-Duplex
  • 20 Mbps Full-Duplex

Functionality

Port Packet Filtering/ Forwarding Rate

• 148,800 pps for 100 M
• 14,880 pps for 10 M

Swithing Fabric

• DES-1016D: 3.2 Gbps switching fabric
• DES-1024D: 4.8 Gbps switching fabric

Number of Ports

• DES-1016D: 16 10/100Mbps Fast Ethernet ports
• DES-1024D: 24 10/100Mbps Fast Ethernet ports

Network Cables

• 10BASE-T:
  • UTP CAT 3/4/5/5e (100 m max.)
  • EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX
  • UTP CAT 5/5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

LED Indicators

• Per port: Link/Activity
• Per device: Power

Transmission Method

• Store-and-forward

MAC Address Table

• 8K entries per device

MAC Address Learning

• Automatic update

Packet Filtering /Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

Topology

• Star

Protocol

• CSMA/CD

Physical

Dimensions

• 282 x 150 x 44 mm (11.1 x 5.91 x 1.73 inches)

Weight

• DE-1016D: 1.06 kg (2.34 lbs)
• DES-1024D: 1.14 kg (2.51 lbs)

Power Consumption

• DES-1016D
  • Standard Power Consumption: 0.9 Watts
  • Maximum Power Consumption: 2.1 Watts
• DES-1024D
  • Standard Power Consumption: 1.17 Watts
  • Maximum Power Consumption: 2.8 Watts

Heat Dissipation

• DES-1016D: Maximum Heat Dissipation: 7.1652 BTU/h
• DES-1024D: Maximum Heat Dissipation: 9.5536 BTU/h

MTBF

• DES-1016D: 492,096 hours
• DES-1024D: 810,880 hours

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -10 to 70 °C (14 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing

Certifications

• CE
• FCC
• ICES-003
• BSMI
• RCM
• CCC
• VCCI
• cUL
• CB
• LVD

Order Information

• Part Number Description : DES-1016D and DES-1024D 16/24 Port 10/100 Switch

Specifications

• 100Base-TX Interface : 24
• Auto MDI/MDIX : Yes
• Switching Capacity : 4.8 Gbps
• Max. Packet Forwarding Rate : 3.57 Mpps
• Store & Forwarding Forwading : Yes
• Dimension : 280 × 150 × 44 mm
• Weight : 1.14 kg
• Operation Temperature : 0 ~ 40 °C
• Storage Temperature : - 20 ~ 70 °C
• Operation Humidity : 0% ~ 90% RH
• Storage Humidity : 5% ~ 90% RH
• Maximum Power Consumption : 2.8 Watts
• Operating Altitude : 2000m and 40 degree C +/- 2 & Humidity 92%
• Standby Power Consumption : 1.17 Watts
• Acoustic : 0 dB
• Power Input : AC?100 ~ 240 V
• Packet Buffer Size : 2 MB
• FAN : Fanless
• Energy Efficiency Ethernet (EEE) : Yes
• Comply with RoHS 6 : Yes
• Power Saving By Link Status : Yes
• MAC Address Table Size : 8K
• 802.3x Flow Control : Yes
• Head-of-line (HOL) Blocking Prevention : Yes
• Number of Queue : 4
