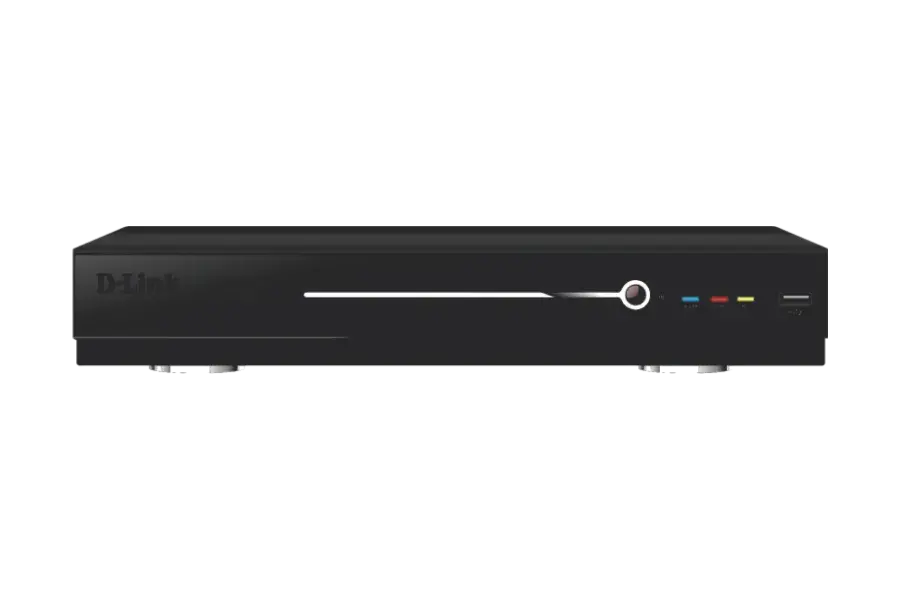

D-Link 16CH Network Video Recorder DNR-F5216-M8
D-Link 16CH Network Video Recorder DNR-F5216-M8
Enquiry Us Contact Now- 16CH, 2 SATA NVR
- Support up to 8MP IPC
- Support H.265+/H.265/H.264+/H.264
- Support Smart Playback & Analytics
- Support 3G/4G Wi-Fi Connectivity
- Support Google Drive & Dropbox Cloud storage
- Support Onvif 2.6
- Support 1CH Audio
Specifications
Video & Audio Input
- IP Video Input : 16ch
- Two Way Talk : 1-ch, RCA
Video & Audio Output
- HDMI : 1ch, resolution:4K(3840×2160)/30Hz,1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
- VGA : 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
- Audio Output : 1-ch, RCA
Recording
- Compression : H.265+/H.265 /H.264+/H.264
- Resolution : 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF /QCIF
- Bit Rate : 64Kbps~10Mbps
Playback & Backup
- Playback Mode : Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback
- Decoding Capability : 4CH@1080P(25fps)
- Backup Mode : USB Device/Network
Advanced Features
- Smart Detection : Line crossing, Area Intrusion, Fast moving, Unattached Object, Object Missing
- Smart Playback : Line Crossing/Area Intrusion /Motion Detection
- Cloud Storage : Support
- Cloud Upgrade : Support
Network
- Incoming Bandwidth : 160Mbps
- Outgoing Bandwidth : 256Mbps
- Ethernet : 1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface
- Network Compatibility : HTTP, HTTPS, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, DDNS, FTP, P2P, ONVIF 2.6
- Smart Phone : IOS (iPhone, iPad), Android (Phone, Pad)
Hard Disk
- SATA : 2 SATA interface
- Capacity : Up to 8TB capacity for each HDD
External Interface
- USB Interface
- Front panel: 1 × USB 2.0
- Rear panel: 1 × USB 2.0
- Alarm In : 8CH
- Alarm Out : 1CH
General
- Power Supply : DC12V 3.3A
- Power Consumption : ?10W (without HDD)
- Working Environment : -10°C~+55°C / 10%~90%RH
- Dimension (W×D×H) : 326*243*52mm
- Weight : ?2.3Kg
- Certification : CE, BIS
System Management
- Mobile Software : D-Link Smart CCTV App
- Desktop Software : DSVS (D-Link Smart Video Surveillance)
- System Requirement for Web Interface : IE
