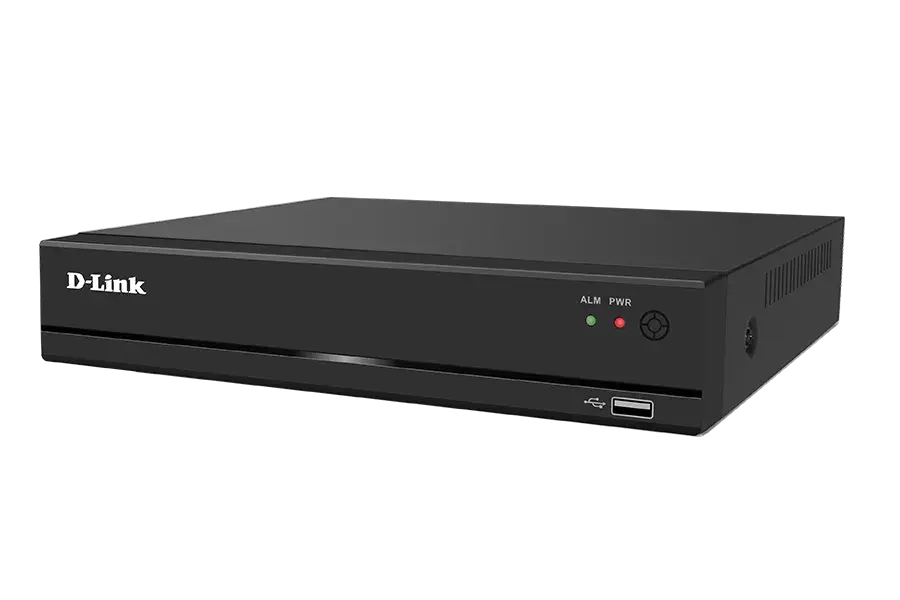

D-Link 16CH, 1 SATA H.264+ DVR DVR-F2116-M1 Digital Video Recorder

D-Link 16CH, 1 SATA H.264+ DVR DVR-F2116-M1 Digital Video Recorder

Brand : D-Link

Model : DVR-F2116-M1

Enquiry Us Contact Now

Key Features

16 CH, 1SATA
Supports AHD/TVI/CVI/CVBS /IP Cameras
Supports AHD/TVI/CVI upto 2MP
Supports H.264+/H.264
Supports Smart Playback & Analytics
Supports 3G/4G Wi-Fi
Google drive & Dropbox Cloud Storage

Specifications

VIDEO & AUDIO INPUT

Video Input : 16ch BNC interface (1.0Vp-p, 75 ?)
TVI / CVI /AHD : 1080P, 720P
IPC : Up to 16ch 2MP
Audio Input : 1-ch, RCA (2.0 Vp-p, 1 K?)
Two way Talk : 1-ch, multiplex with Audio Input (RCA) )

VIDEO & AUDIO OUTPUT

HDMI : 1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
VGA : 1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/ 60Hz,1024×768/60Hz
CVBS : Supported
Audio Output : 1-ch, RCA (2.0 Vp-p, 1 K?)

RECORDING

Compression : H.264/H.264+
Resolution : 16ch 1080P Lite@12fps; 960H1/D1/CIF real time
Frame Rate(fps) : 1fps-12fps
Video Bit Rate : 11Kbps-2707Kbps
Record Mode : Manual, Schedule, Alarm
Audio Compression : G.711a
Audio Bit Rate : 64Kbps

PLAYBACK & BACKUP

Playback Mode : Smart Playback/Normal/Time Division/ Label/ Event/ Picture Playback
Playback Rate : 16ch Playback
Backup Mode : USB Device/Network

SMART FUNCTION

Smart Detection for Analog : 2CH line crossing detection, area Intrusion
Smart Playback for Analog : Line crossing detection, Area Intrusion, Motion detection
Cloud Storage : Support
Cloud Upgrade : Support

NETWORK

Ethernet : 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
Network Function : HTTPs,HTTP,TCP/IP,IPv4,UPnP,Onvif2.6,RTSP,RTCP,UDP,SMTP,SNMP,Multicast,IGMP,NTP,DHCP,DNS,DDNS, FTP, P2P
Smart Phone : IOS (iPhone, iPad), Android (Phone, Pad)

HARD DISK

SATA : 1 HDD
Capacity : Up to 8TB capacity for each HDD

EXTERNAL INTERFACE

Serial Interface : RS-485
USB Interface : 2 × USB

GENERAL

Power Supply : DC12V, 2A
Power Consumption : ?10W (without HDD)
Working Environment : -10°C~+55°C / 10%~90%RH
Dimension (W×D×H) : 250 x 230 x 45mm
Weight (without HDD) : 1.5kg
Certification : CE,BIS

SYSTEM MANAGEMENT

Mobile Software : D-LINK SMART CCTV App
Desktop Software : DSVS (D-LINK Smart Video Surveillance)
System Requirement for Web Interface : IE
