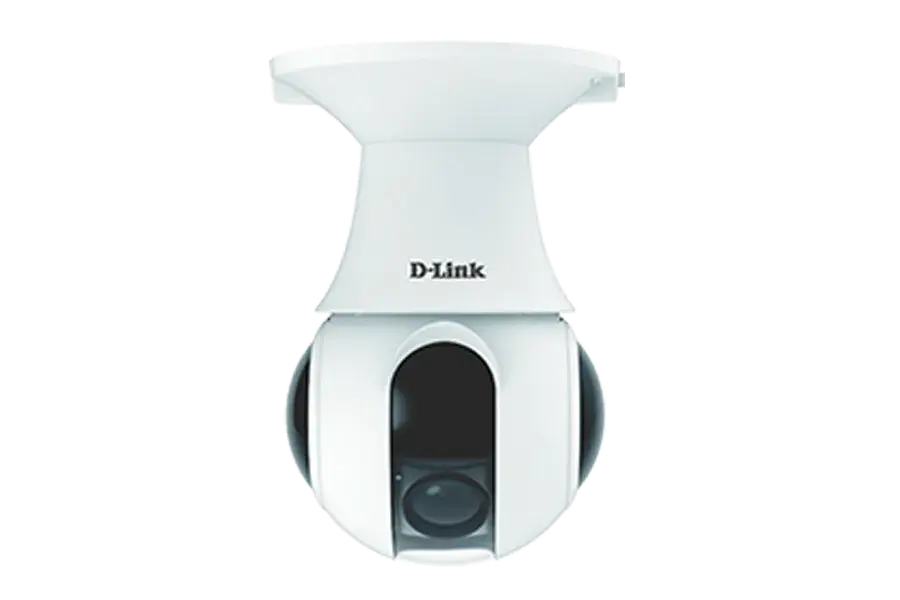

D-Link 12X 3MP High Speed Dome Network Camera DCS-F6123
D-Link 12X 3MP High Speed Dome Network Camera DCS-F6123
Enquiry Us Contact Now- 1 /2.8”progressive Scan CMOS Sensor
- 2048 X 1536 @ 25fps
- Auto Focus Zoom lens : 4.7 to 56.4mm
- 12X Optical Zoom & 16X Digital Zoom
- -40 to 60 deg wide temperature control
- Smart IR upto 100m
- Smart defog
- Region of Interest
- Audio/Alarm support
- SD/ SDHC/ SDXC Slot, max 64GB
Specifications
Camera
- Camera Hardware Profile :
- 1/2.8”progressive Scan CMOSsensor
- 4.7~56.4mm auto focus zoom lens
- Minimum illumination 0.01 Lux (Color); 0.001 Lux (B/W), IR ON 0 Lux<
- Built-in Infrared-Cut Removable (ICR) Filter<
- 100 meter IR illumination distance<
- 12x optical zoom, 16x digital zoom
- Aperture F1.2 - F3.2<
- Angle of View<
- (H) 69.7° to 7.56°<
- (V) 21.4° to 3.27°<
- Shutter Speed 1/1 to 1/10,000 sec.
- Camera Housing : IP66 compliant weatherproof housing
- PTZ Hardware Profile :
- Pan travel: 360° endless
- Track: 6
- Tilt travel: -10° to 90°
- Cruise Paths: 12
- Presets: 300 points
- Pan and tilt speed proportional to zoom ratio
- Preset Accuracy
- Resume after power loss
- Tilt Speed: 0.01 to 90°/s
- 3D Positioning
- Pan Speed: 0.01° to 180°/s
- Scan: 12
- Tilt Preset Speed: 90°/s
- Pan Preset Speed: 180°/s
- Image Features :
- Configurable image size, quality, frame rate, VBR/CBR (500kbps ~ 12 Mbps)
- Configurable privacy masks total zones
- Configurable exposure, Brightness, sSaturation, Contrast, Sharpness, White balance, Rotate mode, Corridor mode
- Time stamp and text overlays<
- Customized text overlay
- Digital Noise reduction with 2D and 3D technology
- Image Enhancement with WDR, HLC, ROI,Defog<
- No. of zones configurable for ROI : 8
- Video Compression :
- H.264 High/Main/Baseline Profile, MJPEG
- JPEG for still images
- 2048(H) ×1536(V)/25 FPS
- Video Resolution :
- Stream 1: 2048(H) ×1536(V)
- Stream 2: 1080P/720P/D1/CIF/QCIF/VGA/QVGA/640x360
- Audio Support : G.711, RAW_PCM
- Frame Rate : Selectable upto 30 FPS
- Vandal Proof (IK-10) : Yes
- External Device Interfaces
- 1 Ethernet (10/100 Base-T) RJ-45 Connector
- Reset Button
- 1ch Audio In,1ch Audio Out
- Micro SD/SDHC/SDXC slot (Built-in), Max 64GB
- 2ch Alarm In,1ch Alarm Out
Network
- Network Protocols :
- IPv4
- DDNS Client
- IPv6
- SMTP
- TCP/IP
- HTTP/HTTPS
- UDP
- PPPoE
- ICMP
- UPnP
- DHCP Client
- RTP/RTSP
- NTP Client
- Multicast
- DNS Client
- ONVIF compliant
- Security
- Administrator and user group protection
- HTTP and RTSP authentication
- Remote client access control
- HTTPS encryption for web access hardware watchdog
System Management
- System Requirements for Web Interface
- IE 11 ,Chrome ,Firefox
- Event Management
- Motion detection, Video Loss, Port Alarm
- Event notification and upload snapshots/video clips via e-mail
- Alerts to SMTP client
- Multiple event notification only on mails
- Remote Management :
- Configuration interface accessible via web browser
- Take snapshots
- OS and Mobile Support :
- Operating System:Windows 7/8/XP/Vista/2000 and higher
- Android
- DCMS System Requirement
- Operating System: 32 Bits - MSWindows XP pro SP3/Visa SPI/Win 7 SPI/Win10
- 64 bits - Win 7 SPI/Win Server 2008 R2
- DCMS Software Function : Control and manage up to 64 channels
General
- Weight : 1.5kg
- Protection :
- TVS4000V Lightning Protection
- Surge Protection
- Power Input : Standard DC12V/POE+, Optional AC24V
- Max.Power Consumption : Max 25W
- Operating Temperature : Working Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
- Humidity : Operating: 0% ~ 90% RH
- Certification : CE & FCC
- Dimension : 321.3x222.3x146.6 mm
Order Information
- DCS-F6123 : 12X 3MP High Speed Dome Network Camera
