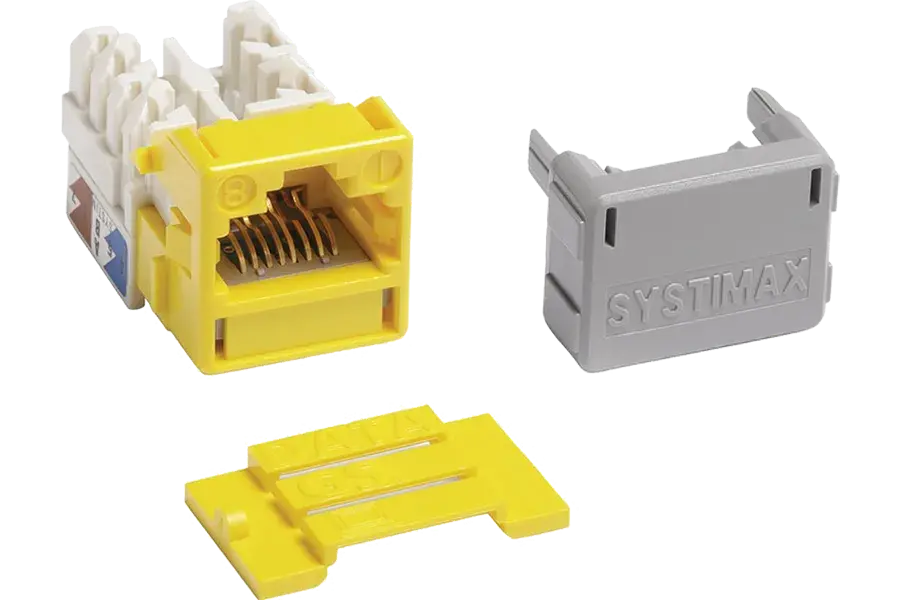

CommScope Systimax 700206691 Mgs400bh Yellow

GigaSPEED XL® MGS400 Series Category 6 U/UTP Information Outlet, yellow

Brand : Commscope

Model : MGS400-123

Enquiry Us Contact Now

Features and Benefits

  • Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class E and ANSI/TIA-568-C.2 Category 6
  • Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel
  • Snaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular panels
  • Mountable either at 90 degrees (straight) or 45 degrees (angled) in M-series faceplate
  • Universal design and label supports both T568 A & B wiring
  • IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable
  • Support network line speeds up to at least 10 gigabits per second
  • Low-profile rear protective strain relief cap, protects against contamination and secures the connection

Specifications

Product Classification

  • Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America | North America
  • Portfolio : SYSTIMAX®
  • Product Type : Modular jack
  • Product Brand : GigaSPEED XL®

General Specifications

  • ANSI/TIA Category : 6
  • Cable Type : Unshielded
  • Color : Yellow
  • Conductor Type : Solid | Stranded
  • Termination Type : IDC
  • Wiring : T568A | T568B

Dimensions

  • Height : 20.32 mm | 0.8 in
  • Width : 20.32 mm | 0.8 in
  • Depth : 30.48 mm | 1.2 in
  • Compatible Conductor Gauge, solid : 22 AWG | 24 AWG
  • Compatible Conductor Gauge, stranded : 22 AWG | 24 AWG

Electrical Specifications

  • Contact Resistance Variation, maximum : 20 mOhm
  • Contact Resistance, maximum : 100 mOhm
  • Current Rating at Temperature : 1.5 A @ 20 °C | 1.5 A @ 68 °F
  • Dielectric Withstand Voltage, RMS, conductive surface : 1,500 Vac @ 60 Hz
  • Dielectric Withstand Voltage, RMS, contact-to-contact : 1,000 Vac @ 60 Hz
  • Insulation Resistance, minimum : 500 mOhm
  • Remote Powering : Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Material Specifications

  • Contact Plating Material : Precious metals
  • Material Type : Copper alloy | High-impact, flame retardant, thermoplastic
  • Termination Contact Plating : Nickel

Mechanical Specifications

  • Plug Insertion Life, minimum : 750 times
  • Plug Insertion Life, test plug : IEC 60603-7 compliant plug
  • Plug Retention Force, minimum : 133 N | 29.9 lbf

Environmental Specifications

  • Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
  • Storage Temperature : -40 °C to +70 °C (-40 °F to +158 °F)
  • Relative Humidity : Up to 95%, non-condensing
  • Flammability Rating : UL 94 V-0
  • Safety Standard : UL | cUL

Packaging and Weights

  • Packaging quantity : 1

Regulatory Compliance/Certifications

  • ISO 9001:2015  : Designed, manufactured and/or distributed under this quality management system
  • ROHS : Compliant
  • CHINA-ROHS  : Below maximum concentration value
  • REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
