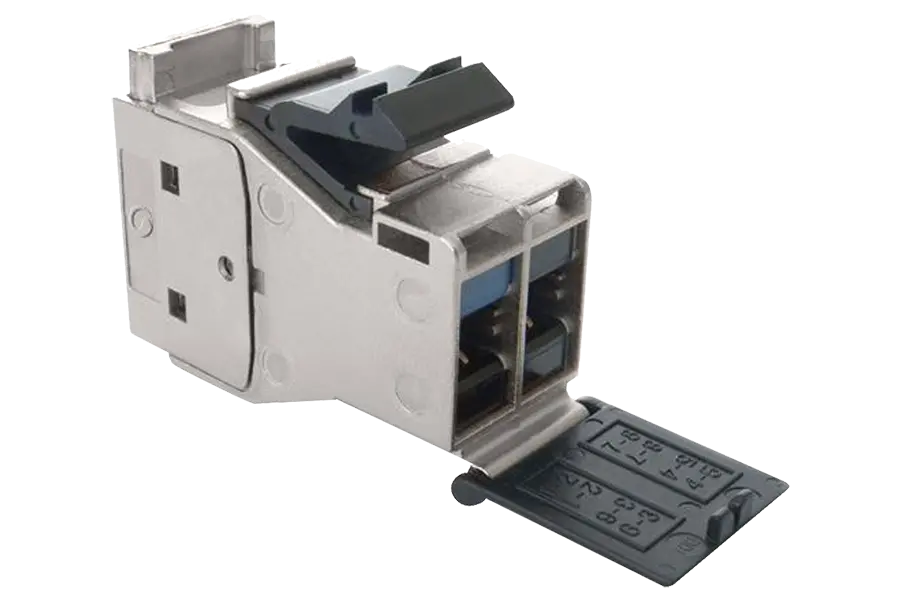

CommScope NetConnect Category 7AS, Shielded, With Dust Cover

AMP-TWIST SL-Series Modular Jack, 8-position, category 7AS, shielded, with dust cover

Brand : Commscope

Model : 7-1711441-1

Enquiry Us Contact Now

Product Classification

• Regional Availability : Australia/New Zealand | EMEA | Latin America
• Portfolio : NETCONNECT®
• Product Type : Modular jack
• Product Series : SL Series

General Specifications

• ANSI/TIA Category : 7A
• Cable Type : Shielded
• Color : Silver
• Conductor Type : Solid | Stranded
• Outlet Type : Standard
• Panel Cutout, recommended : 14.78 x 20.32 mm (0.58 x 0.80 in)
• Termination Tool : SL Termination tool
• Termination Type : IDC
• Transmission Standards : ANSI/TIA-568-C.2 | ISO/IEC 11801 Class FA
• Wiring : T568A | T568B

Dimensions

• Height : 26.34 mm | 1.037 in
• Width : 14.48 mm | 0.57 in
• Depth : 36.5 mm | 1.437 in
• Compatible Cable Diameter, maximum : 9 mm | 0.354 in
• Compatible Insulated Conductor Diameter, maximum : 1.6 mm | 0.063 in
• Contact Plating Thickness : 1.27 µm
• Panel Thickness, recommended : 1.6 mm | 0.063 in
• Compatible Conductor Gauge, solid : 24–22 AWG
• Compatible Conductor Gauge, stranded : 26–24 AWG

Material Specifications

• Contact Base Material : Beryllium copper
• Contact Plating Material : Gold
• Material Type : Zinc alloy

Packaging and Weights

• Included : Shutter
• Packaging quantity : 12
• Packaging Type : Tray in box

Regulatory Compliance/Certifications

• ROHS : Compliant
• CHINA-ROHS  : Below maximum concentration value
• REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
