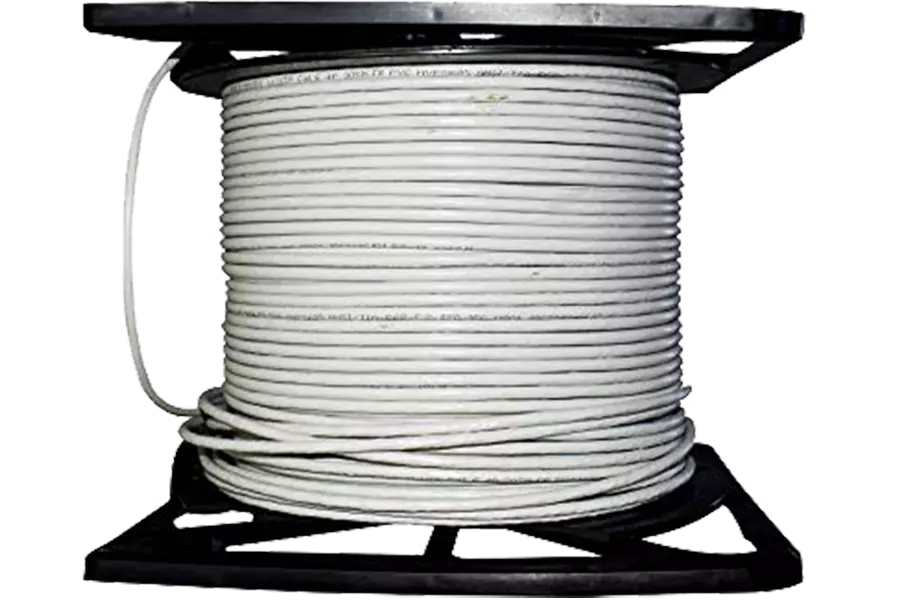

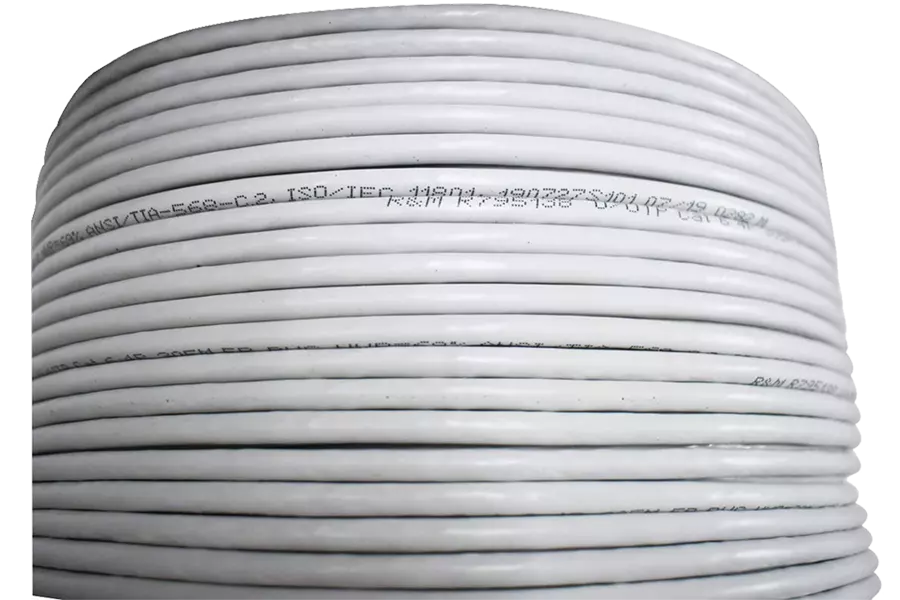

COMMSCOPE NetConnect CAT6 U/UTP Cable Grey-305m | 1000 Feet-884036314/10

Category 6 U/UTP Cable, low smoke zero halogen, gray jacket, 4 pair count, 1000 ft (305 m) length Commpak

Brand : Commscope

Model : 884036314/10 | CS37Z3 GRY

Enquiry Us Contact Now

Product Classification

• Regional Availability : Asia
• Portfolio : NETCONNECT®
• Product Type : Twisted pair cable
• Ordering Note : Available in Asia Pacific

General Specifications

• Product Number : CS37Z3
• ANSI/TIA Category : 6
• Cable Component Type : Horizontal
• Cable Type : U/UTP (unshielded)
• Conductor Type, singles : Solid
• Conductors, quantity : 8
• Jacket Color : Gray
• Note : All electrical transmission tests include swept frequency measurements | Testing Frequency up to 600 MHz
• Pairs, quantity : 4
• Separator Type : Isolator
• Transmission Standards : ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E

Dimensions

• Cable Length : 304.8 m | 1000 ft
• Diameter Over Conductor : 1.039 mm | 0.0409 in
• Diameter Over Jacket, nominal : 5.842 mm | 0.23 in
• Jacket Thickness : 0.559 mm | 0.022 in
• Conductor Gauge, singles : 23 AWG

Electrical Specifications

• Characteristic Impedance : 100 ohm
• dc Resistance Unbalance, maximum : 5 %
• dc Resistance, maximum : 7.61 ohms/100 m | 2.32 ohms/100 ft
• Delay Skew, maximum : 45 ns
• Dielectric Strength, minimum : 1500 Vac | 2500 Vdc
• Mutual Capacitance at Frequency : 5.6 nF/100 m @ 1 kHz
• Nominal Velocity of Propagation (NVP) : 68 %
• Operating Frequency, maximum : 400 MHz
• Operating Voltage, maximum : 80 V
• Remote Powering : Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
• Safety Voltage Rating : 300 V

Electrical Cable Performance

• CS : CommScope
• Std : Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
• Typ : Typical
• IL : Insertion Loss (dB/100m)
• NEXT : Near End Crosstalk (dB/100m)
• ACR : Attenuation to Crosstalk Ratio (dB/100m))
• PSNEXT : Power Sum Near End Crosstalk (db/100m)
• PSACR : Power Sum Attenuation to Crosstalk Ratio (dB/100m)
• ACRF : Attenuation to Crosstalk Ratio - Far End (dB/100m)
• PSACRF : Insertion Loss (dB/100m)
• RL : Return Loss (dB)

Material Specifications

• Conductor Material : Bare copper
• Insulation Material : Polyolefin
• Jacket Material : Low Smoke Zero Halogen (LSZH)
• Separator Material : Polyolefin

Mechanical Specifications

• Pulling Tension, maximum : 11.34 kg | 25 lb

Environmental Specifications

• Installation temperature : 0 °C to +60 °C (+32 °F to +140 °F)
• Operating Temperature : -20 °C to +60 °C (-4 °F to +140 °F)
• Acid Gas Test Method : IEC 60754-2
• Environmental Space : Low Smoke Zero Halogen (LSZH)
• Flame Test Method : IEC 60332-3-22
• Smoke Test Method : IEC 61034-2

Packaging and Weights

• Cable weight : 37.249 kg/km | 25.03 lb/kft
• Packaging Type : CommPak® box

Regulatory Compliance/Certifications

• ISO 9001:2015  : Designed, manufactured and/or distributed under this quality management system
• ROHS : Compliant
• CHINA-ROHS  : Below maximum concentration value
• REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
