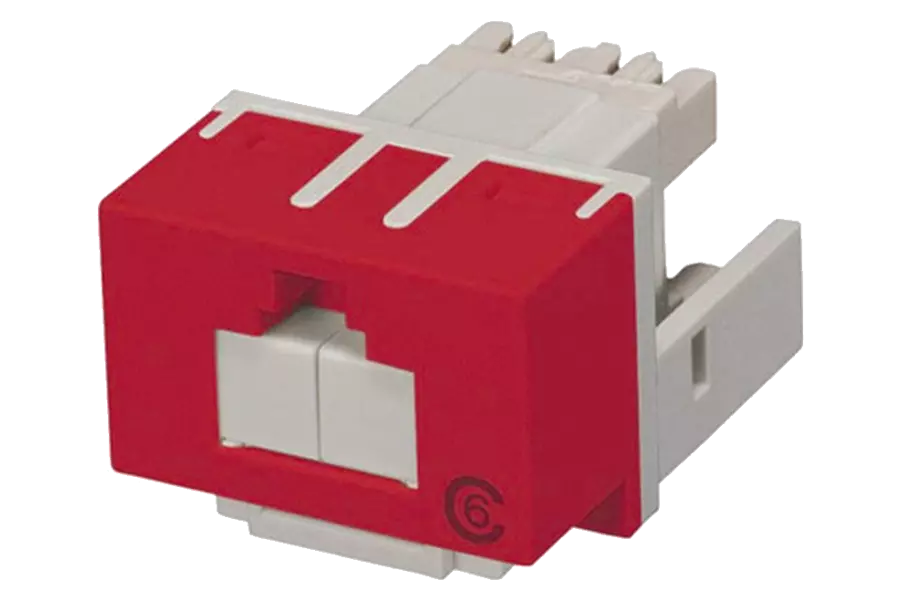

CommScope NetConnect Cat6 RJ45 Modular Jack 1554435-3, Red

SX Series Modular Jack, RJ45, category 6, with shutter, red

Brand : Commscope

Model : 1554435-3

Enquiry Us Contact Now

Product Classification

• Regional Availability : Asia | Australia/New Zealand
• Portfolio : NETCONNECT®
• Product Type : Modular jack
• Product Series : SX Series

General Specifications

• ANSI/TIA Category : 6
• Cable Type : Unshielded
• Color : Red
• Conductor Type : Solid | Stranded
• Outlet Type : Standard
• Termination Tool : 110 Punchdown tool
• Termination Type : IDC
• Transmission Standards : ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E
• Wiring : T568A | T568B

Dimensions

• Height : 20.3 mm | 0.799 in
• Width : 26 mm | 1.024 in
• Depth : 35.6 mm | 1.402 in
• Compatible Insulated Conductor Diameter, maximum : 1.45 mm | 0.057 in
• Contact Plating Thickness : 1.27 µm
• Panel Thickness, recommended : 1.6 mm | 0.063 in
• Compatible Conductor Gauge, solid : 24–22 AWG
• Compatible Conductor Gauge, stranded : 26–24 AWG

Material Specifications

• Contact Base Material : Beryllium copper
• Contact Plating Material : Gold
• Material Type : Polycarbonate

Environmental Specifications

• Flammability Rating : UL 94 V-0

Packaging and Weights

• Included : Shutter | Strain relief cap
• Packaging quantity : 1
• Packaging Type : Bag

Regulatory Compliance/Certifications

• ROHS : Compliant
• CHINA-ROHS  : Below maximum concentration value
• REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
