Category : Copper

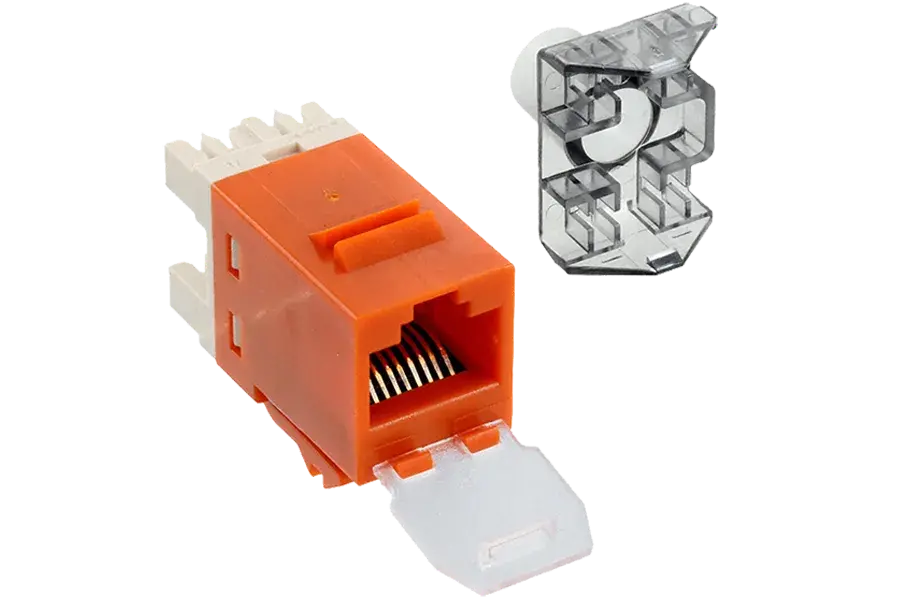

CommScope Netconnect Cat6 Jack 1375187-5 Orange

SL110 Series Modular Jack, RJ45, 8-position, category 6, T568A/T568B, unshielded, with dust cover, orange

Brand : Commscope

Model : 1375187-5

Enquiry Us Contact Now

Specifications

Product Classification

  • Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America
  • Portfolio : NETCONNECT®
  • Product Type : Modular jack
  • Product Series : SL Series

General Specifications

  • ANSI/TIA Category : 6
  • Cable Type : Unshielded
  • Color : Orange
  • Conductor Type : Solid | Stranded
  • Mounting : SL Series faceplates and panels
  • Outlet Type : Standard
  • Panel Cutout, recommended : 14.78 x 20.07 mm (0.58 x 0.79 in)
  • Termination Punchdowns, minimum : 200 times
  • Termination Tool : SL Termination tool
  • Termination Type : IDC
  • Transmission Standards : ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E
  • Wiring : T568A | T568B

Dimensions

  • Height : 16.26 mm | 0.64 in
  • Width : 14.48 mm | 0.57 in
  • Depth : 30.48 mm | 1.2 in
  • Compatible Insulated Conductor Diameter, maximum : 1.45 mm | 0.057 in
  • Contact Plating Thickness : 1.27 µm
  • Panel Thickness, recommended : 1.6 mm | 0.063 in
  • Compatible Conductor Gauge, solid : 24–22 AWG
  • Compatible Conductor Gauge, stranded : 26–24 AWG

Electrical Specifications

  • Remote Powering : Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
  • Safety Voltage Rating : 150 Vac

Material Specifications

  • Contact Base Material : Beryllium copper
  • Contact Plating Material : Gold
  • Material Type : Polycarbonate

Mechanical Specifications

  • Plug Insertion Life, minimum : 750 times
  • Plug Retention Force, minimum : 89 N | 20.008 lbf

Environmental Specifications

  • Operating Temperature : -40 °C to +70 °C (-40 °F to +158 °F)
  • Flammability Rating : UL 94 V-0
  • Safety Standard : CSA | cUL

Packaging and Weights

  • Included : Shutter | Strain relief cap
  • Packaging quantity : 1
  • Packaging Type : Bag

Regulatory Compliance/Certifications

  • ROHS : Compliant
  • CHINA-ROHS  : Below maximum concentration value
  • REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
