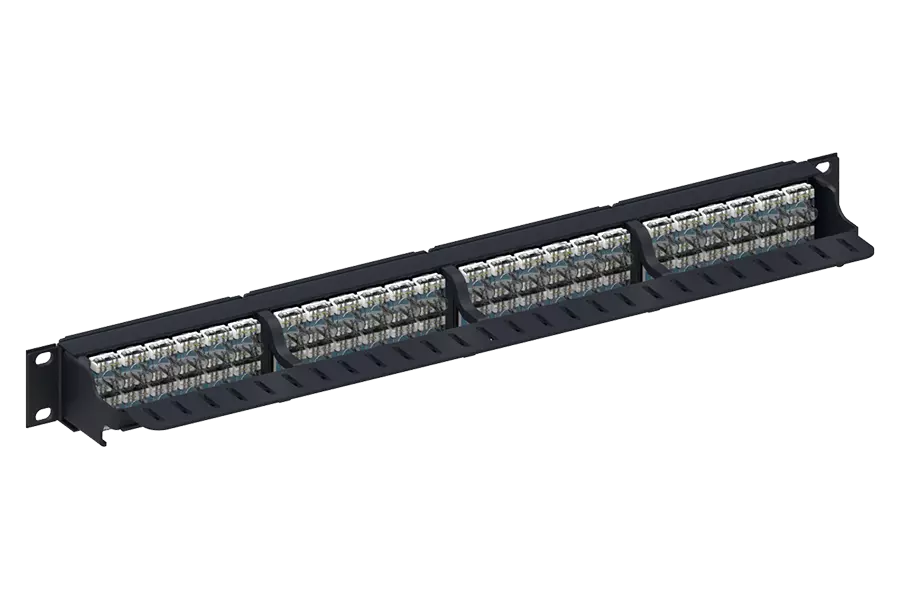

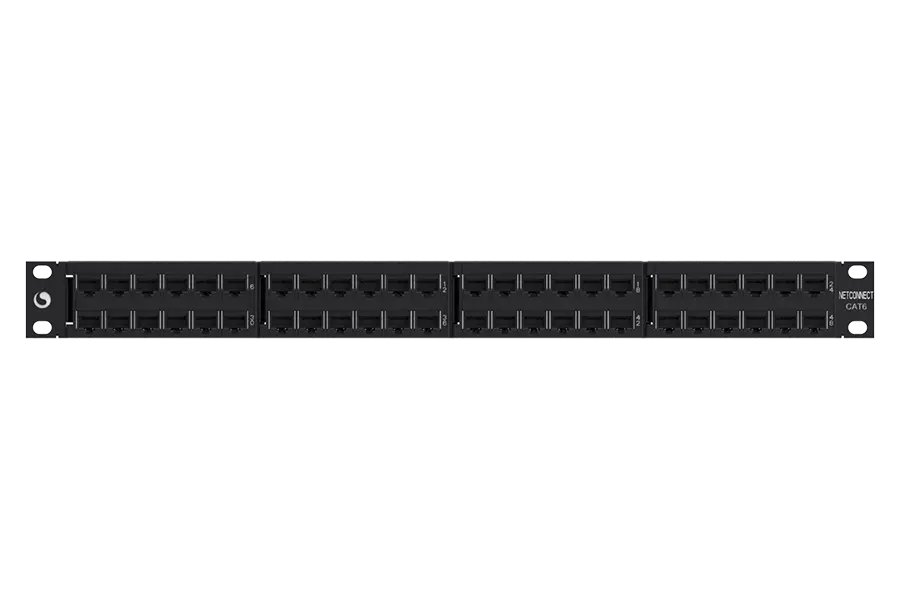

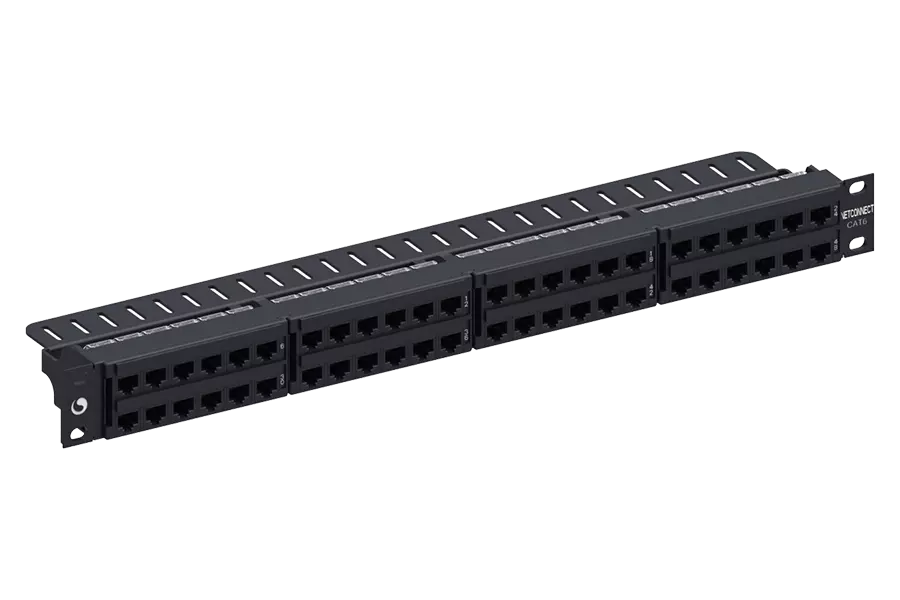

CommScope NetConnect 760237060 NPP-UDDM-SL-1U-48

Discrete Distribution Module Panel, Cat6, UTP, 1U, 48 port

Brand : Commscope

Model : 760237060

Enquiry Us Contact Now

Product Classification

• Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America
• Portfolio : NETCONNECT®
• Product Type : RJ45 patch panel

General Specifications

• ANSI/TIA Category : 6
• Cable Type : Unshielded
• Color : Black
• Modules, quantity : 4
• Panel Style : Straight
• Rack Type : EIA 19 in
• Rack Units : 1
• Total Ports, quantity : 48
• Wiring : T568A | T568B

Dimensions

• Height : 44.45 mm | 1.75 in
• Width : 482.6 mm | 19 in
• Depth, with cable management : 93.98 mm | 3.7 in
• Compatible Diameter Over Dielectric, maximum : 1.168 mm | 0.046 in
• Compatible Diameter Over Dielectric, minimum : 0.762 mm | 0.03 in

Electrical Specifications

• Current Rating at Temperature : 1.5 A @ 20 °C | 1.5 A @ 68 °F
• Dielectric Withstand Voltage, RMS, conductive surface : 1,500 Vac @ 60 Hz
• Dielectric Withstand Voltage, RMS, contact-to-contact : 1,000 Vac @ 60 Hz
• Insulation Resistance, minimum : 500 mOhm

Material Specifications

• Material Type : High-impact, flame retardant, thermoplastic | Powder-coated steel
• Environmental Specifications
• Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
• Storage Temperature : -40 °C to +70 °C (-40 °F to +158 °F)
• Relative Humidity : Up to 95%, non-condensing
• Flammability Rating : UL 94 V-0
• Safety Standard : UL | cUL

Packaging and Weights

• Included : Modular jacks (48)
• Packaging quantity : 1

Regulatory Compliance/Certifications

• ISO 9001:2015  : Designed, manufactured and/or distributed under this quality management system
• ROHS : Compliant
• CHINA-ROHS  : Below maximum concentration value
• REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
