Category : Copper

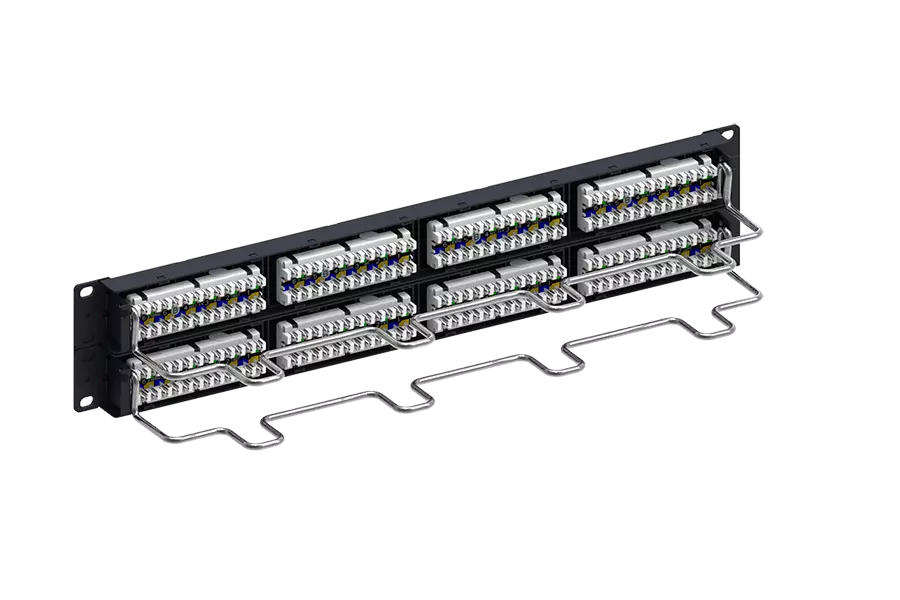

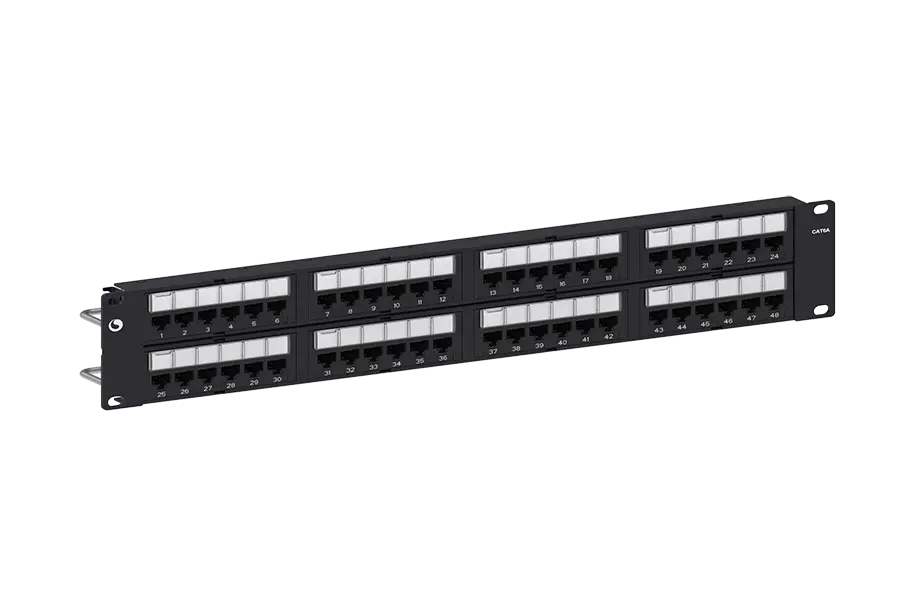

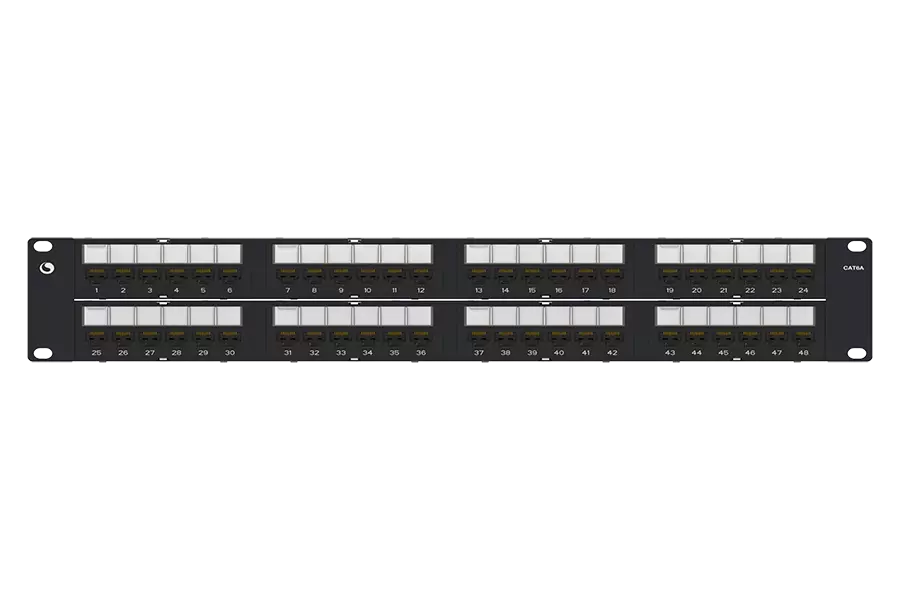

CommScope NetConnect 760237033 NPP-6A-DM-2U-48

Distribution Module Panel, Cat 6A, UTP, 2U, 48 port

Brand : Commscope

Model : 760237033

Enquiry Us Contact Now

Product Classification

• Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America
• Portfolio : NETCONNECT®
• Product Type : RJ45 patch panel

General Specifications

• ANSI/TIA Category : 6A
• Cable Type : Unshielded
• Color : Black
• Conductor Type : Solid | Stranded
• Modules, quantity : 8
• Panel Style : Straight
• Rack Type : EIA 19 in
• Rack Units : 2
• Termination Type : IDC
• Total Ports, quantity : 48
• Wiring : T568A | T568B

Dimensions

• Height : 88.9 mm | 3.5 in
• Width : 482.6 mm | 19 in
• Depth, with cable management : 119.38 mm | 4.7 in
• Compatible Diameter Over Dielectric, maximum : 1.168 mm | 0.046 in
• Compatible Diameter Over Dielectric, minimum : 0.762 mm | 0.03 in
• Compatible Conductor Gauge, solid : 22 AWG | 24 AWG
• Compatible Conductor Gauge, stranded : 22 AWG | 24 AWG

Electrical Specifications

• Current Rating at Temperature : 1.5 A @ 20 °C | 1.5 A @ 68 °F
• Dielectric Withstand Voltage, RMS, conductive surface : 1,500 Vac @ 60 Hz
• Dielectric Withstand Voltage, RMS, contact-to-contact : 1,000 Vac @ 60 Hz
• Insulation Resistance, minimum : 500 mOhm
• Remote Powering : Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Material Specifications

• Contact Plating Material : Precious metals
• Material Type : High-impact, flame retardant, thermoplastic | Powder-coated steel
• Termination Contact Plating : Nickel

Mechanical Specifications

• Plug Insertion Life, minimum : 750 times
• Plug Insertion Life, test plug : IEC 60603-7 compliant plug
• Plug Retention Force, minimum : 133 N | 29.9 lbf

Environmental Specifications

• Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
• Storage Temperature : -40 °C to +70 °C (-40 °F to +158 °F)
• Relative Humidity : Up to 95%, non-condensing
• Flammability Rating : UL 94 V-0
• Safety Standard : UL | cUL

Packaging and Weights

• Packaging quantity : 1

Regulatory Compliance/Certifications

• ISO 9001:2015  : Designed, manufactured and/or distributed under this quality management system
• RCM  : Compliant to electrical safety, EMC, EME & telecommunications requirements
• ROHS : Compliant
• CHINA-ROHS  : Below maximum concentration value
• REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
