Category : Copper

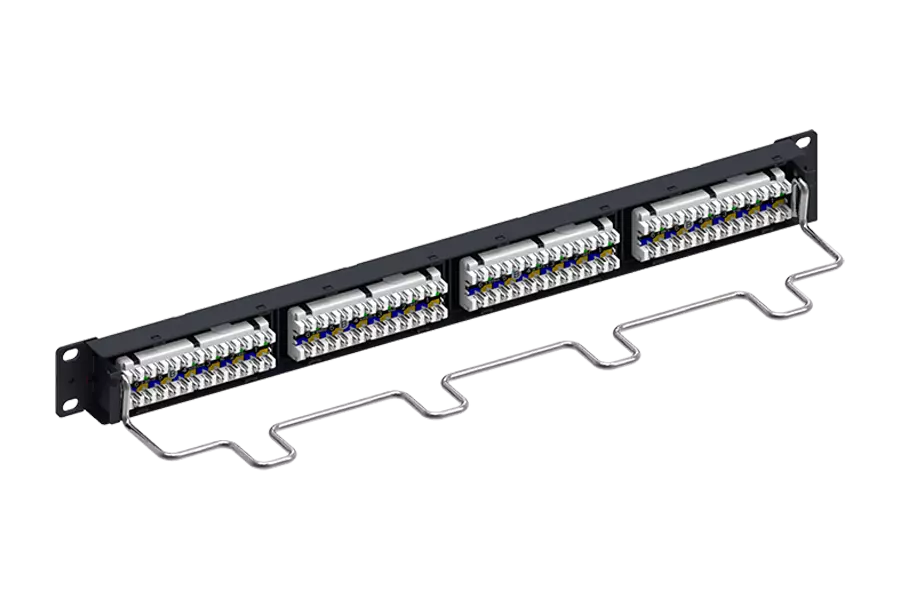

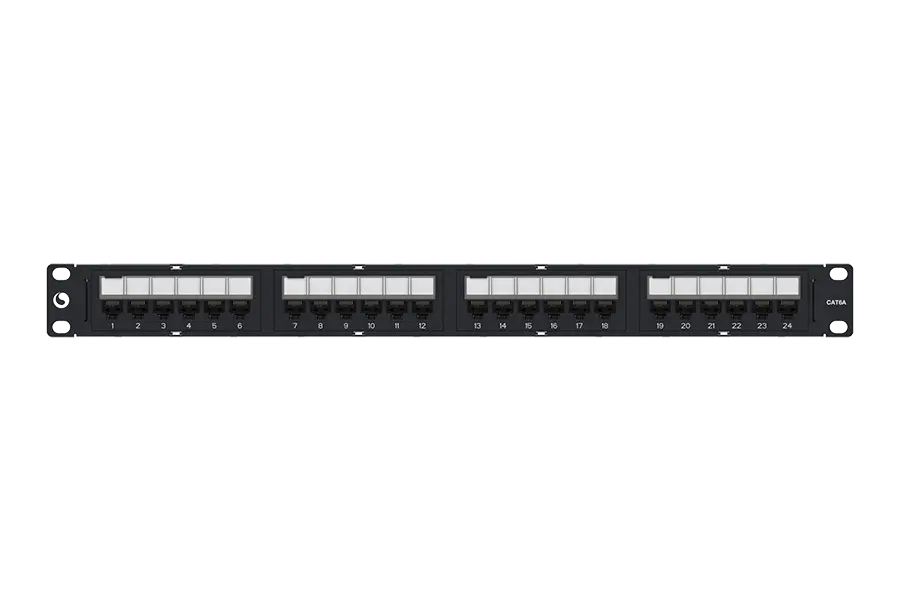

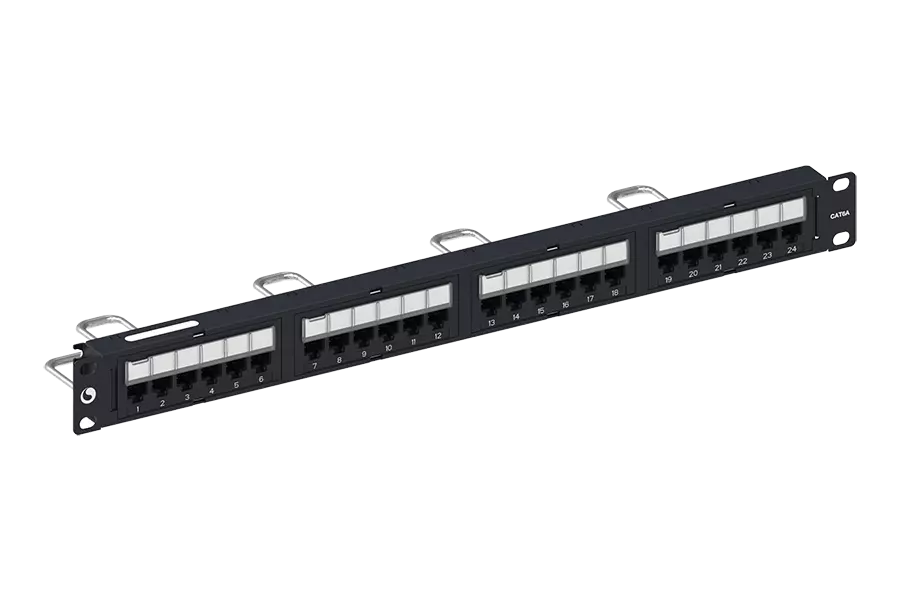

CommScope NetConnect 760237032 NPP-6A-DM-1U-24

Distribution Module Panel, Cat 6A, UTP, 1U, 24 port

Brand : Commscope

Model : 760237032

Enquiry Us Contact Now

Product Classification

  • Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America
  • Portfolio : NETCONNECT®
  • Product Type : RJ45 patch panel

General Specifications

  • ANSI/TIA Category : 6A
  • Cable Type : Unshielded
  • Color : Black
  • Conductor Type : Solid | Stranded
  • Modules, quantity : 4
  • Panel Style : Straight
  • Rack Type : EIA 19 in
  • Rack Units : 1
  • Termination Type : IDC
  • Total Ports, quantity : 24
  • Wiring : T568A | T568B

Dimensions

  • Height : 44.45 mm | 1.75 in
  • Width : 482.6 mm | 19 in
  • Depth, with cable management : 119.38 mm | 4.7 in
  • Compatible Diameter Over Dielectric, maximum : 1.168 mm | 0.046 in
  • Compatible Diameter Over Dielectric, minimum : 0.762 mm | 0.03 in
  • Compatible Conductor Gauge, solid : 22 AWG | 24 AWG
  • Compatible Conductor Gauge, stranded : 22 AWG | 24 AWG

Electrical Specifications

  • Current Rating at Temperature : 1.5 A @ 20 °C | 1.5 A @ 68 °F
  • Dielectric Withstand Voltage, RMS, conductive surface : 1,500 Vac @ 60 Hz
  • Dielectric Withstand Voltage, RMS, contact-to-contact : 1,000 Vac @ 60 Hz
  • Insulation Resistance, minimum : 500 mOhm
  • Remote Powering : Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Material Specifications

  • Contact Plating Material : Precious metals
  • Material Type : High-impact, flame retardant, thermoplastic | Powder-coated steel
  • Termination Contact Plating : Nickel

Mechanical Specifications

  • Plug Insertion Life, minimum : 750 times
  • Plug Insertion Life, test plug : IEC 60603-7 compliant plug
  • Plug Retention Force, minimum : 133 N | 29.9 lbf

Environmental Specifications

  • Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
  • Storage Temperature : -40 °C to +70 °C (-40 °F to +158 °F)
  • Relative Humidity : Up to 95%, non-condensing
  • Flammability Rating : UL 94 V-0
  • Safety Standard : UL | cUL

Packaging and Weights

  • Packaging quantity : 1

Regulatory Compliance/Certifications

  • ISO 9001:2015  : Designed, manufactured and/or distributed under this quality management system
  • RCM  : Compliant to electrical safety, EMC, EME & telecommunications requirements
  • ROHS : Compliant
  • CHINA-ROHS  : Below maximum concentration value
  • REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
