Category : Copper

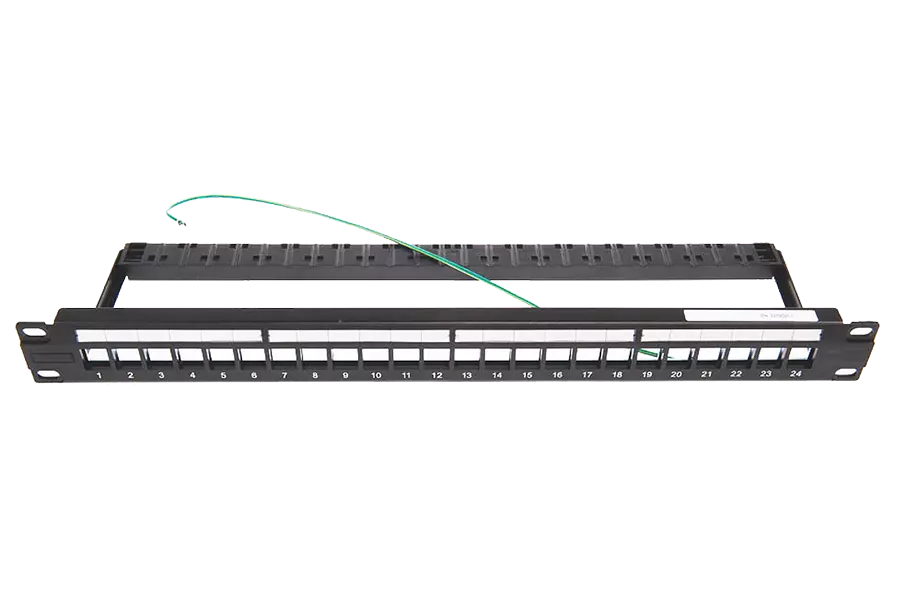

CommScope NetConnect 2269025-1

Patch Panel Assembly, 24 Port, STP E-Series, unloaded

Brand : Commscope

Model : 2269025-1

Enquiry Us Contact Now

Product Classification

• Regional Availability : EMEA
• Portfolio : CommScope®
• Product Type : RJ45 patch panel

General Specifications

• Application : For use with E Series outlets
• Color : Black
• Growth Configuration : Unloaded
• Interface, front : RJ45 jack
• Modules, quantity : 24
• Panel Mounting : Flush
• Panel Style : Straight
• Rack Type : EIA 19 in
• Rack Units : 1
• Termination Type : IDC
• Total Ports, quantity : 24

Dimensions

• Height : 44.45 mm | 1.75 in
• Width : 482.6 mm | 19 in
• Depth : 125 mm | 4.921 in

Material Specifications

• Material Type : High-impact, flame retardant, thermoplastic | Steel

Environmental Specifications

• Operating Temperature : -25 °C to +50 °C (-13 °F to +122 °F)

Packaging and Weights

• Packaging Material : Eco-friendly, Single-use Plastics-free
• Packaging quantity : 1
• Packaging Type : Bag | Box

Regulatory Compliance/Certifications

• ROHS : Compliant
• CHINA-ROHS  : Below maximum concentration value
• REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
