Category : Copper

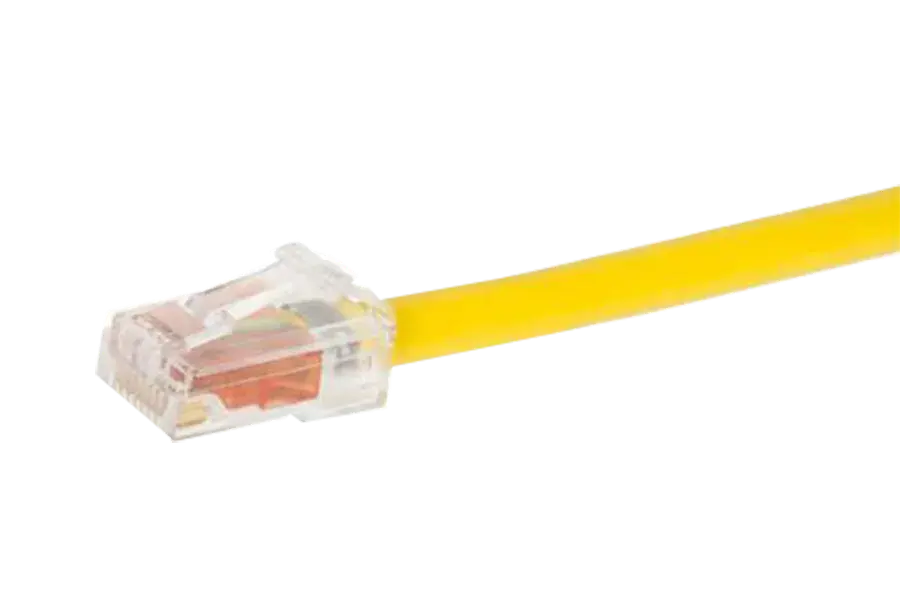

CommScope 7ft Cat6 Patch Cable - Yellow CPC3392-09F007

GigaSPEED XL® GS8E Stranded Low Smoke Zero Halogen Cordage Modular Patch Cord

Brand : Commscope

Model : CPC3392-09F007

Enquiry Us Contact Now

Product Classification

  • Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America | North America
  • Portfolio : SYSTIMAX®
  • Product Type : Twisted pair patch cord
  • Product Brand : GigaSPEED XL®
  • Product Series : CPC
  • Ordering Note : Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices

General Specifications

  • ANSI/TIA Category : 6
  • Cable Type : U/UTP (unshielded)
  • Conductor Type : Stranded
  • Interface, Connector A : RJ45 plug
  • Interface Feature, connector A : Standard
  • Interface, Connector B : RJ45 plug
  • Interface Feature, connector B : Standard
  • Jacket Color : Yellow
  • Pairs, quantity : 4
  • Wiring : T568B

Dimensions

  • Cable Assembly Length, minimum (cm) : 15
  • Cable Assembly Length, maximum (cm) : 300
  • Cable Assembly Length, minimum (in) : 6
  • Cable Assembly Length, maximum (in) : 120
  • Cable Assembly Length, minimum (ft) : 1
  • Cable Assembly Length, maximum (ft) : 100
  • Cable Assembly Length, minimum (m) : 1
  • Cable Assembly Length, maximum (m) : 30

Electrical Specifications

  • dc Resistance, maximum : 0.3 ohm
  • Safety Voltage Rating : 300 V

Material Specifications

  • Contact Plating Material : Precious metals
  • Material Type : Copper alloy | Polycarbonate

Mechanical Specifications

  • Plug Insertion Life, minimum : 750 times
  • Plug Retention Force, minimum : 133 N | 29.9 lbf

Environmental Specifications

  • Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
  • Environmental Space : Low Smoke Zero Halogen (LSZH)
  • Flammability Rating : UL 94 V-0

Packaging and Weights

  • Packaging quantity : 1

Regulatory Compliance/Certifications

  • ISO 9001:2015  : Designed, manufactured and/or distributed under this quality management system
