Category : Accessories

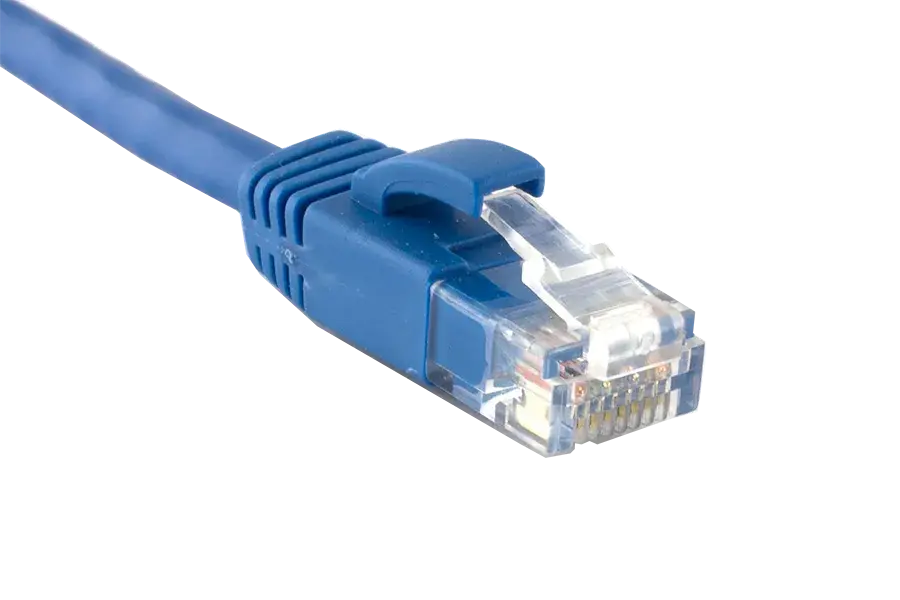

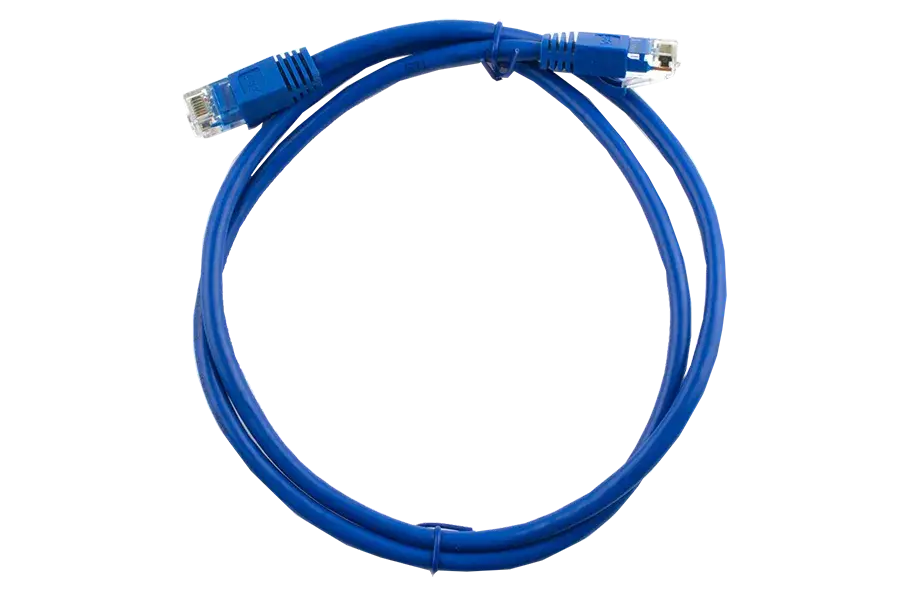

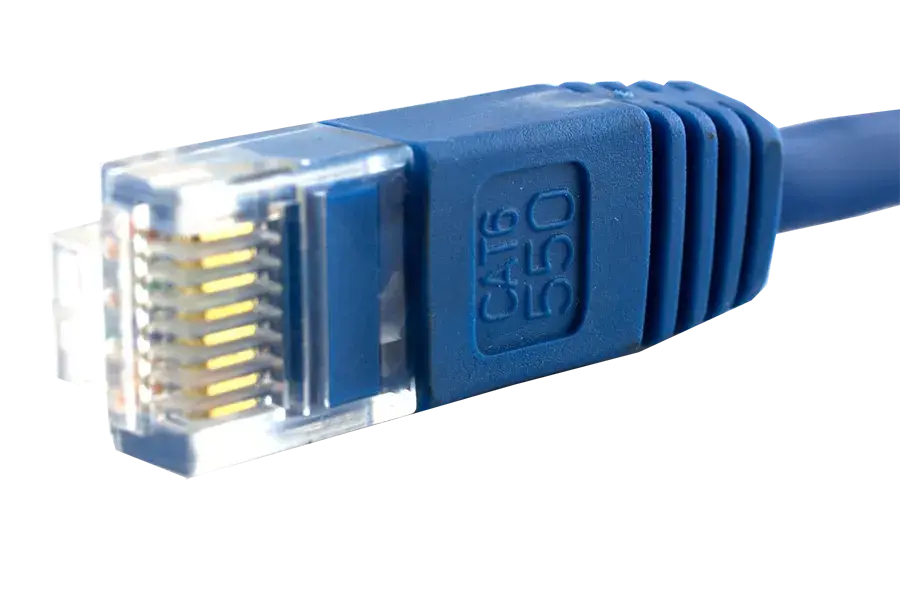

CommScope 1M Cat6 Patch Cable - Blue NPC06UZDB-BL002M

NPC RJ45 Patch Cord, category 6, U/UTP, LSZH

Brand : Commscope

Model : NPC06UZDB-BL002M

Enquiry Us Contact Now

Features and Benefits

  • High-performance patch cords exceeding industry standards supporting NETCONNECT channel specifications
  • Standardized transparent, slim-line boots provides consistent patch cord appearance and supports highest density applications
  • Colored clips are available to fit the transparent boot, eliminating the need of multiple colors for matching every jacket color
  • Colored pull latch tabs are available for easier plug release handling from the modular jack

Specifications

Product Classification

  • Regional Availability : Asia | EMEA | Latin America
  • Portfolio : NETCONNECT®
  • Product Type : Twisted pair patch cord
  • Product Series : NPC
  • Ordering Note : Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices

General Specifications

  • ANSI/TIA Category : 6
  • Cable Type : U/UTP (unshielded)
  • Conductor Type : Stranded
  • Interface, Connector A : RJ45 plug
  • Interface Feature, connector A : Standard
  • Interface, Connector B : RJ45 plug
  • Interface Feature, connector B : Standard
  • Jacket Color : Black | Blue | Green | Orange | Red | Slate | White | Yellow
  • Pairs, quantity : 4
  • Wiring : T568B

Dimensions

  • Cable Assembly Length, minimum (cm) : 15
  • Cable Assembly Length, maximum (cm) : 300
  • Cable Assembly Length, minimum (in) : 6
  • Cable Assembly Length, maximum (in) : 120
  • Cable Assembly Length, minimum (ft) : 1
  • Cable Assembly Length, maximum (ft) : 100
  • Cable Assembly Length, minimum (m) : 1
  • Cable Assembly Length, maximum (m) : 30
  • Diameter Over Jacket : 5.97 mm | 0.235 in
  • Compatible Conductor Gauge, stranded : 24 AWG

Mechanical Specifications

  • Plug Insertion Life, minimum : 750 times

Environmental Specifications

  • Operating Temperature : -20 °C to +60 °C (-4 °F to +140 °F)
  • Relative Humidity : Up to 93%, non-condensing
  • Environmental Space : Low Smoke Zero Halogen (LSZH)
  • Safety Standard : UL 1863

Packaging and Weights

  • Packaging quantity : 1
