Category : Aruba Switches

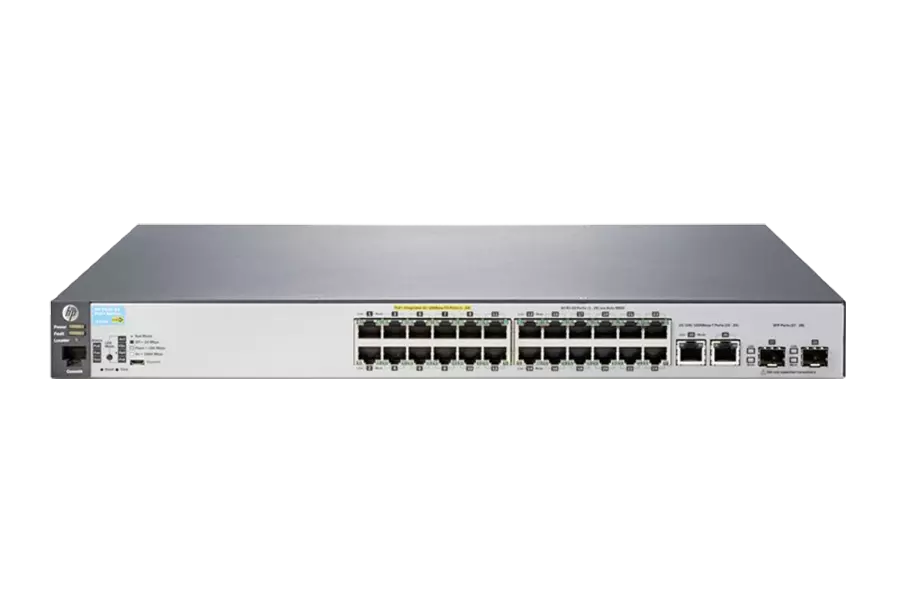

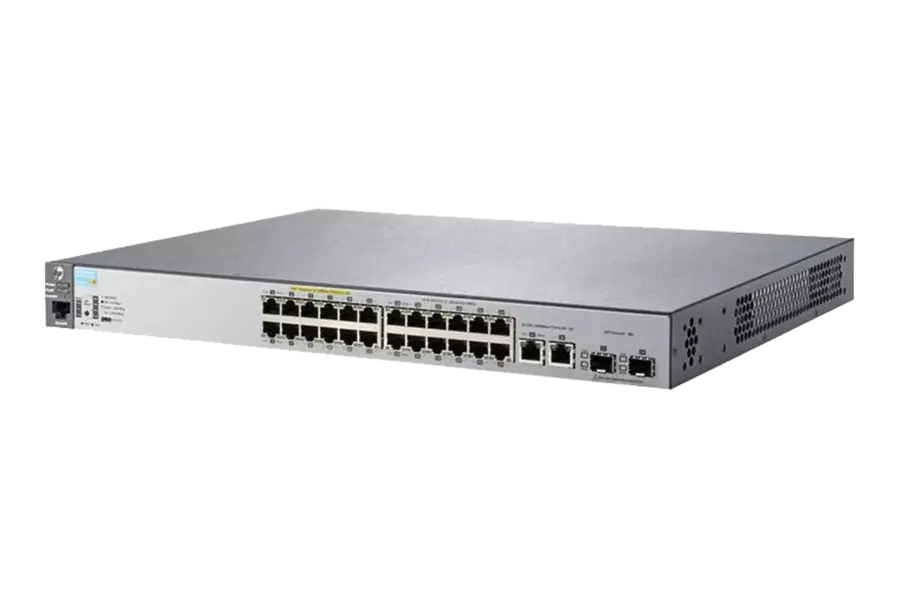

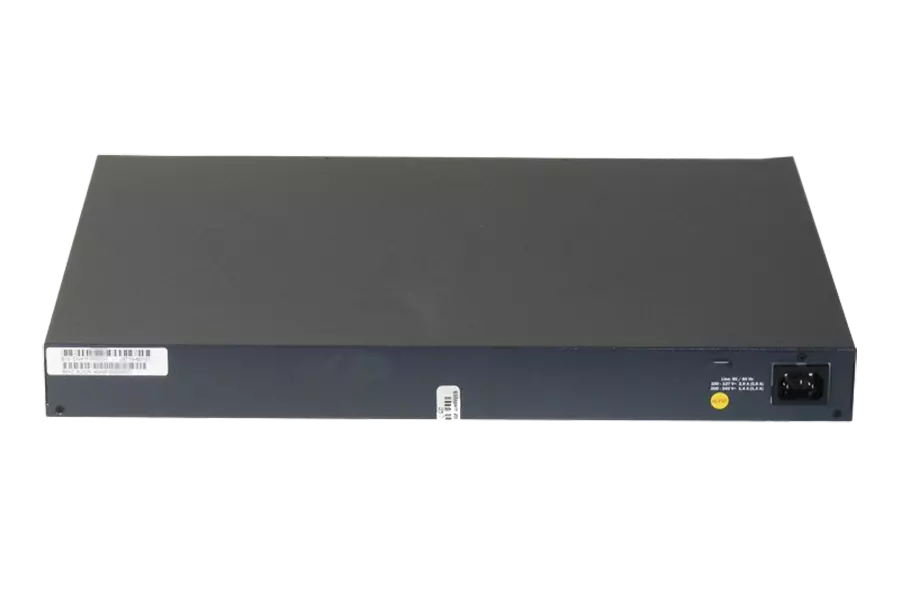

Aruba 2530 24PoE+ Switch

Aruba 2530 24PoE+ Switch, Managed-L2,10/100&10/100/1000Mbps

Brand : Aruba

Model : J9779A

Enquiry Us Contact Now

The HP Aruba 2530-24-PoE+ Switch (J9779A) is a switch that provides security, reliability, and ease of use for enterprises, branch offices, and SMBs. This fully managed switch delivers full Layer 2 capabilities with enhanced access security, ACLs, traffic prioritisation, sFlow, and IPv6 host support. Right size deployment is simple with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, and optional PoE+. The 2530 delivers power savings with fanless models, Energy Efficient Ethernet, ability to disable LEDs and enable port low power mode.

Key Features

  • Cost-effective, reliable and secure Aruba Layer 2 switch series.
  • ACLs, EEE, traffic prioritisation.
  • 8-, 24-, and 48-port Gigabit or Fast Ethernet models.
  • PoE+ models for voice, video and wireless.
  • Security and network management with Aruba
  • ClearPass Policy Manager, AirWave and cloud- based Central
  • The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

Technical Specification

I/O ports and slots

  • 24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full
  • 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
  • 2 fixed Gigabit Ethernet SFP ports
  • 1 dual-personality (RJ-45 or USB micro-B) serial console port

Physical Characteristics

  • Dimension:
    • 17.40 (w) x 12.70 (d) x 1.75 (h) in
    • (44.2 x 32.26 x 4.45 cm) (1U height)
  • Weight: 8.4 lb (3.81 kg)

Memory and processor

  • Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated

Mounting and enclosure

  • Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting

Performance

  • IPv6 Ready Certified
  • 100 Mb Latency: < 1.7 ?s (LIFO 64-byte packets)
  • 1000 Mb Latency: < 1.1 ?s (LIFO 64-byte packets)
  • Throughput: up to 9.5 Mpps (64-byte packets)
  • Switching capacity: 12.8 Gbps
  • MAC address table size: 16000 entries

Environment

  • Operating temperature:32°F to 113°F (0°C to 45°C)
  • Operating relative humidity:15% to 95% @ 104°F (40°C), noncondensing
  • Nonoperating/Storage temperature: -40°F to 158°F (-40°C to 70°C)
  • Nonoperating/Storage relative humidity: 15% to 90% @ 149°F (65°C), noncondensing
  • Altitude: up to 10,000 ft (3 km)
  • Acoustic: Power: 40.4 dB, Pressure: 31.7 dB

Electrical Characteristics

  • Frequency: 50/60 Hz
  • Maximum heat dissipation:99 BTU/hr (104.45 kJ/hr), (switch only: 99 BTU/hr; combined switch + max. PoE devices: 809 BTU/hr)
  • AC voltage: 100 - 127/200 - 240 VAC
  • Current: 2.8/1.4 A
  • Maximum power rating: 237 W
  • Idle power: 21.8 W
  • PoE power: 195 W
  • Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the total power budget available to all PoE ports.

Safety

  • UL 60950-1; CAN/CSA 22.2
  • No. 60950-1; EN 60825;
  • IEC 60950-1; EN 60950-1

Emissions

  • FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A

Immunity

  • Generic: EN 55024, CISPR 24
  • EN: EN 55024, CISPR 24
  • ESD: IEC 61000-4-2
  • Radiated: IEC 61000-4-3
  • EFT/Burst: IEC 61000-4-4
  • Surge: IEC 61000-4-5
  • Conducted: IEC 61000-4-6
  • Power frequency magnetic field: IEC 61000-4-8
  • Voltage dips and interruptions: IEC 61000-4-11
  • Harmonics: EN 61000-3-2, IEC 61000-3-2
  • Flicker: EN 61000-3-3, IEC 61000-3-3

Management

  • Aruba Central and Aruba AirWave Network Management;
  • IMC—Intelligent Management Center; command-line interface;
  • Web browser; configuration menu;
  • Out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB;3
  • Repeater MIB;
  • Ethernet Interface MIB AirWave Network Management

Notes

  • IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision “B” or later (product number ends with the letter “B” or later, e.g., J4858B, J4859C) are required.

Services

  • Refer to the Hewlett Packard Enterprise website at www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
