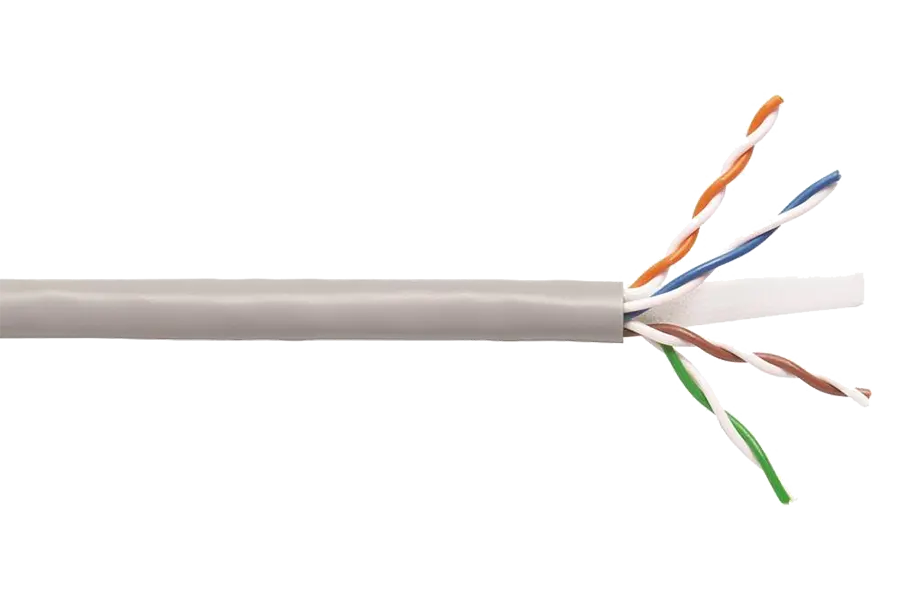

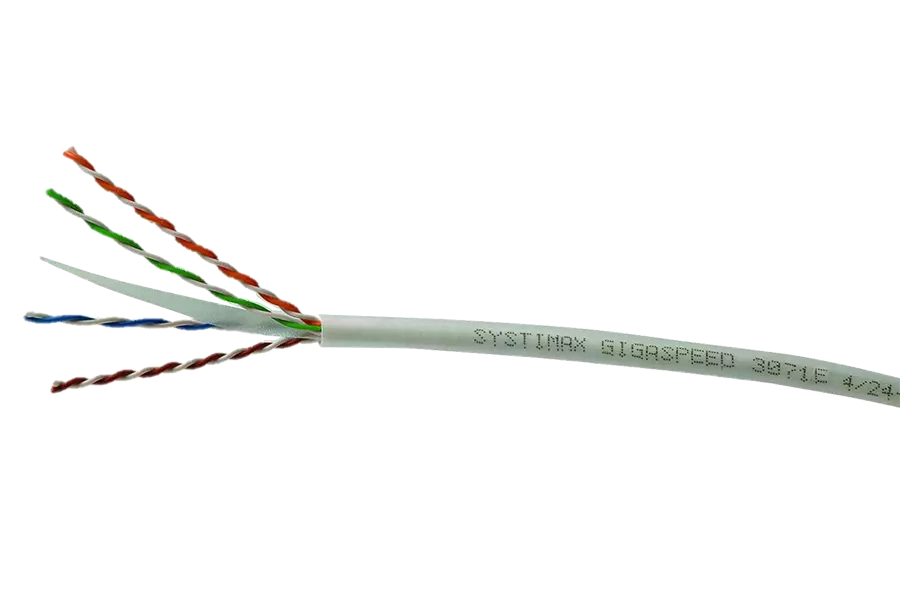

760095554 | 3071E SLT C6 4/23 U/UTP W1000 Cat6 Cable

GigaSPEED XL® 3071 ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

Brand : Commscope

Model : 760095554 | 3071E SL

Enquiry Us Contact Now

Product Classification

• Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America
• Portfolio : SYSTIMAX®
• Product Type : Twisted pair cable
• Product Brand : GigaSPEED XL®

General Specifications

• Product Number : 3071E
• ANSI/TIA Category : 6
• Cable Component Type : Horizontal
• Cable Type : U/UTP (unshielded)
• Conductor Type, singles : Solid
• Conductors, quantity : 8
• Jacket Color : Slate
• Pairs, quantity : 4
• Separator Type : Bisector
• Transmission Standards : ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E

Dimensions

• Cable Length : 304.8 m | 1000 ft
• Diameter Over Conductor : 1.041 mm | 0.041 in
• Diameter Over Jacket, nominal : 5.918 mm | 0.233 in
• Jacket Thickness : 0.508 mm | 0.02 in
• Conductor Gauge, singles : 23 AWG

Electrical Specifications

• dc Resistance Unbalance, maximum : 5 %
• dc Resistance, maximum : 7.61 ohms/100 m | 2.32 ohms/100 ft
• Mutual Capacitance at Frequency : 5.6 nF/100 m @ 1 kHz
• Nominal Velocity of Propagation (NVP) : 70 %
• Operating Frequency, maximum : 300 MHz
• Operating Voltage, maximum : 80 V
• Remote Powering : Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
• Segregation Class : c

Material Specifications

• Conductor Material : Bare copper
• Insulation Material : Polyolefin
• Jacket Material : Low Smoke Zero Halogen (LSZH)
• Separator Material : Polyolefin

Mechanical Specifications

• Pulling Tension, maximum : 11.34 kg | 25 lb

Environmental Specifications

• Installation temperature : 0 °C to +60 °C (+32 °F to +140 °F)
• Operating Temperature : -20 °C to +60 °C (-4 °F to +140 °F)
• Acid Gas Test Method : IEC 60754-2
• EN50575 CPR Cable EuroClass Fire Performance : Dca
• EN50575 CPR Cable EuroClass Smoke Rating : s2
• EN50575 CPR Cable EuroClass Droplets Rating : d2
• EN50575 CPR Cable EuroClass Acidity Rating : a1
• Environmental Space : Low Smoke Zero Halogen (LSZH)
• Flame Test Method : IEC 60332-3-22
• Smoke Test Method : IEC 61034-2

Packaging and Weights

• Cable weight : 37.204 kg/km | 25 lb/kft
• Packaging Type : WE TOTE® box

Regulatory Compliance/Certifications

• CENELEC  : EN 50575 compliant, Declaration of Performance (DoP) available
• ISO 9001:2015  : Designed, manufactured and/or distributed under this quality management system
• ROHS : Compliant
• CHINA-ROHS  : Below maximum concentration value
• REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
