Category : Server Racks

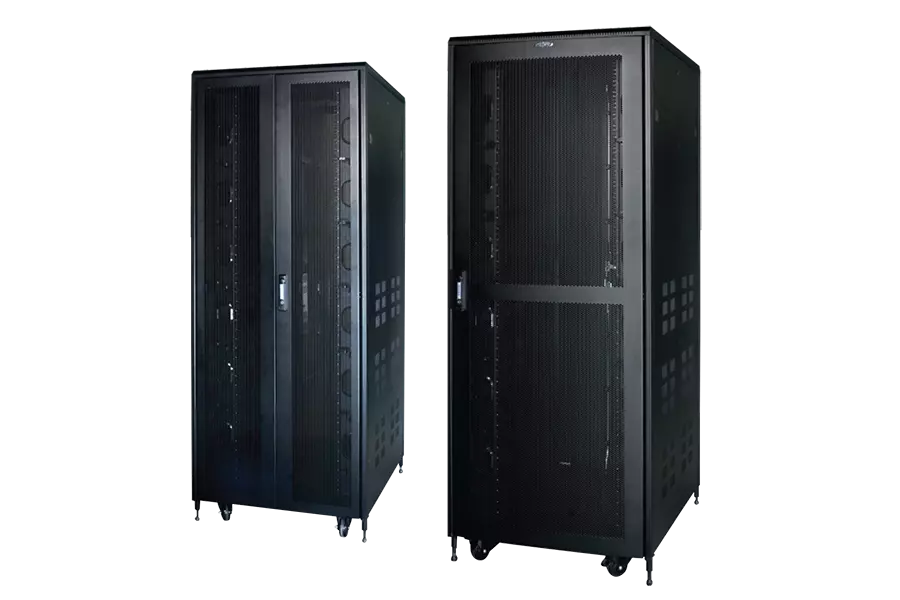

42U 8 x 10 Server Rack

Medium Density Closed Rack Solutions

Brand : NetRack

Model : NRA800

Overview

NRA Series, Rigid Racks for Servers, Networking, AV, Telecom & Lab application. Racks manufactured out of aluminum profile, formed steel frames & members, individually powder coated & bolted with highest quality standards under stringent ISO 9001-2008 Manufacturing & Quality management system.

Standard for Racks configuration will be bolted frame with 4 No. pillars made of aluminium extruded profile bolted to top and bottom ribbed/ reinforced frame additionally supported depth wise by 6 no depth rail 2 folded profile. Associated with vented top cover with fan mounting provision Front Glass or perforated Metal Door with Lock & Key and Back Vented / Perforated Metal Door with Lock & Key and partially vented or Plain side panels,1200 deep rack will be configured with dual side panel. Free standing on floor with 4 No casters wheels with 2 Nos. with brakes and 2 Nos. without brakes & with Levelers OR plinth.

Available in 6RU~52RU Variants with 800,1000 & 1200 Depth configurations and 800 Width configurations

Technical Specifications

Basic Frame : Composite (Aluminium Section & Steel)
Construction : CKD Type
Top & Bottom Cover : Bolted to Frame with Cable entry exit cut outs
Front Door : Lockable Toughened Glass Door Or Lockable Perforated steel Door
Rear Door : Lockable Steel Door – Plain/ Vented/ Perforated
19” Mounting Angle : Formed Steel
Std. Equipment Mounting : DIN Std. 10 mm Sq. Slots
Standard Finish : Powder coated
Standard Colour : Grey & Off white OR Black
Standard Mounting : Caster wheels (2 with Brake & 2 without Brake)OR Levelers Or Plinth
Rack Standard : Conforms to DIN 41494 or equivalent standard
Static Load : 750 Kgs with casters. 1250 Kgs with Levelers/Plinth

Features

Conforms to DIN 41494 or Equivalent EIA /ISO/ EN/CEA Standard
Adjustable mounting depth
4 No Adjustable. 19” verticals with Punched 10mm Squarer Hole and Universal 12.7 mm-15.875 mm- 15.875 mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
Numbered U positions
State-of-the art manufacturing methods provide the best product quality and fastest delivery in the industry
100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
Powder coated finish with Seven tank pretreatment process meeting ASTM standard
Grounding & Bonding Options
Fan module Mount Provision on top Cover

Accessories

Cable Basket
Adapter Kit
Ganging Kit
Angle Pair
Fixed Shelf
Cantilever Shelf
Sliding Shelf
Key Board Shelf
Power Distribution Units
Cable Oragnisers
Fans and Fan Modules
Rack Ground Kit
Plinth
Casters
Levellers
Rack Stabilizing Kit

Note:

Overall Height = Frame Height+Plinth or Caster
Other models can be manufactured on request
It is recommended to distribute the Load along with U space in the Rack
Dimension are in MM

Model Matrix Dimensions

Overall height : 2010
Usable height : 42U
Overall width : 800
Usable width/w1 : 19”/27”
Overall depth : 1000
Usable depth : 900
Caster Type : TYPE-3
Plinth Height (mm) : 50/100
