Category : Copper

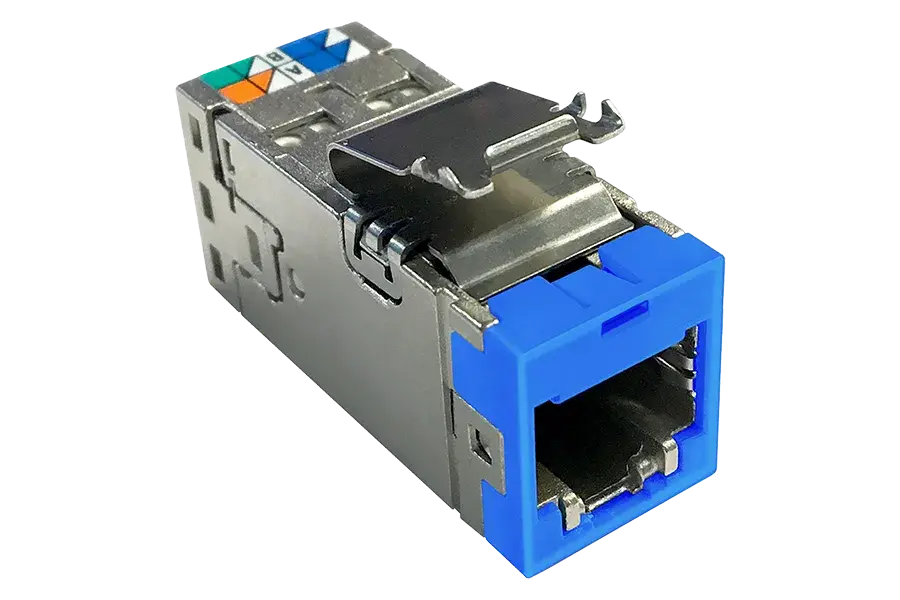

CommScope NetConnect Cat6A RJ45 Modular Jack 4-2153449-6 ECO AMP-TWIST SLX, 6AS,BLU-BULK, Shielded, 4 Pair, Without Dust Cover, Blue (24 Ea/Pkg)

AMP-TWIST SLX Series Modular Jack, category 6A, shielded , 4 Pair, without dust cover, blue (24 ea/pkg)

Brand : Commscope

Model : 4-2153449-6

Enquiry Us Contact Now

Features and Benefits

Part of CommScope’s initiative of removing single-use plastics which also includes copper panels, jacks, cords and faceplates

Specifications

Product Classification

Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America
Portfolio : NETCONNECT®
Product Type : Modular jack
Product Series : SLX Series

General Specifications

ANSI/TIA Category : 6A
Cable Type : Shielded
Color : Blue
Conductor Type : Solid | Stranded
Mounting : SL Series faceplates and panels
Outlet Type : Standard
Panel Cutout, recommended : 14.78 x 20.07 mm (0.58 x 0.79 in)
Termination Tool : SL Termination tool
Termination Type : IDC
Transmission Standards : ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA
Wiring : T568A | T568B

Dimensions

Height : 16.13 mm | 0.635 in
Width : 14.44 mm | 0.569 in
Depth : 36.8 mm | 1.449 in
Compatible Cable Diameter, maximum : 8.5 mm | 0.335 in
Compatible Insulated Conductor Diameter, maximum : 1.6 mm | 0.063 in
Contact Plating Thickness : 1.27 µm
Panel Thickness, recommended : 1.6 mm | 0.063 in
Compatible Conductor Gauge, solid : 26–22 AWG
Compatible Conductor Gauge, stranded : 26–24 AWG

Electrical Specifications

Remote Powering : Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Material Specifications

Contact Base Material : Beryllium copper
Contact Plating Material : Gold
Material Type : Polycarbonate | Zamak

Environmental Specifications

Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
Flammability Rating : UL 94 V-0

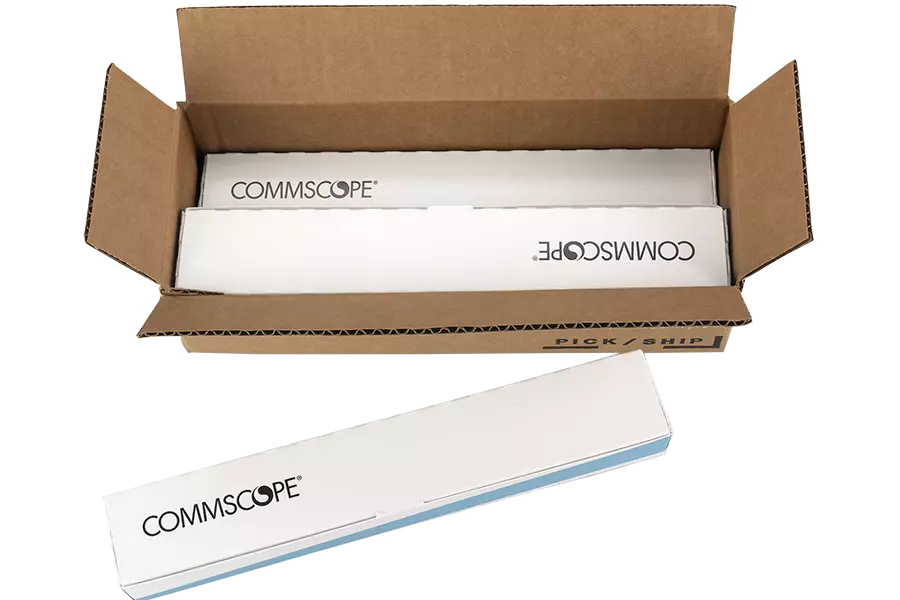

Packaging and Weights

Packaging Material : Eco-friendly, Single-use Plastics-free
Packaging quantity : 24
Packaging Type : Bag | Carton
