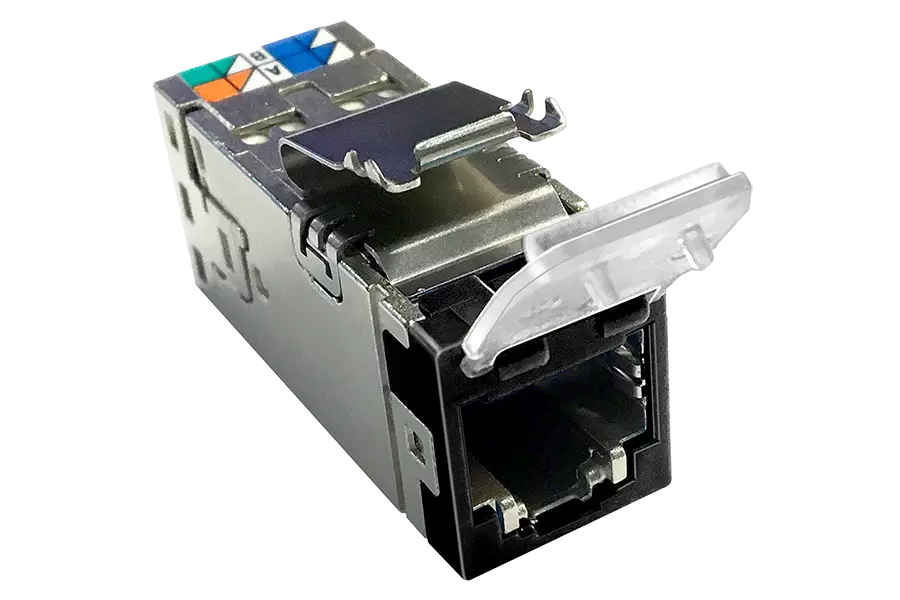

2153365-2 | AMP-TWIST SLX, 6AS W/DC | CommScope NetConnect Cat6A RJ45 Modular Jack, Black

AMP-TWIST SLX Series Modular Jack, category 6A, shielded , 4 Pair, with dust cover, black

Brand : Commscope

Model : 2153365-2

Enquiry Us Contact Now

Product Classification

• Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America
• Portfolio : NETCONNECT®
• Product Type : Modular jack
• Product Series : SLX Series

General Specifications

• ANSI/TIA Category : 6A
• Cable Type : Shielded
• Color : Black
• Conductor Type : Solid | Stranded
• Mounting : SL Series faceplates and panels
• Mounting Note : Color matches with SL-style Black Faceplates and Surface Mount Boxes
• Outlet Type : Standard
• Panel Cutout, recommended : 14.78 x 20.07 mm (0.58 x 0.79 in)
• Termination Tool : SL Termination tool
• Termination Type : IDC
• Transmission Standards : ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA
• Wiring : T568A | T568B

Dimensions

• Height : 16.13 mm | 0.635 in
• Width : 14.44 mm | 0.569 in
• Depth : 36.8 mm | 1.449 in
• Compatible Cable Diameter, maximum : 8.5 mm | 0.335 in
• Compatible Insulated Conductor Diameter, maximum : 1.6 mm | 0.063 in
• Contact Plating Thickness : 1.27 µm
• Panel Thickness, recommended : 1.6 mm | 0.063 in
• Compatible Conductor Gauge, solid : 26–22 AWG
• Compatible Conductor Gauge, stranded : 26–24 AWG

Electrical Specifications

• Remote Powering : Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Material Specifications

• Contact Base Material : Beryllium copper
• Contact Plating Material : Gold
• Material Type : Polycarbonate | Zamak

Environmental Specifications

• Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
• Flammability Rating : UL 94 V-0
• Packaging and Weights
• Packaging quantity : 24
• Packaging Type : Bag | Box

Regulatory Compliance/Certifications

• RCM  : Compliant to electrical safety, EMC, EME & telecommunications requirements
• ROHS : Compliant
• CHINA-ROHS  : Below maximum concentration value
• REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
